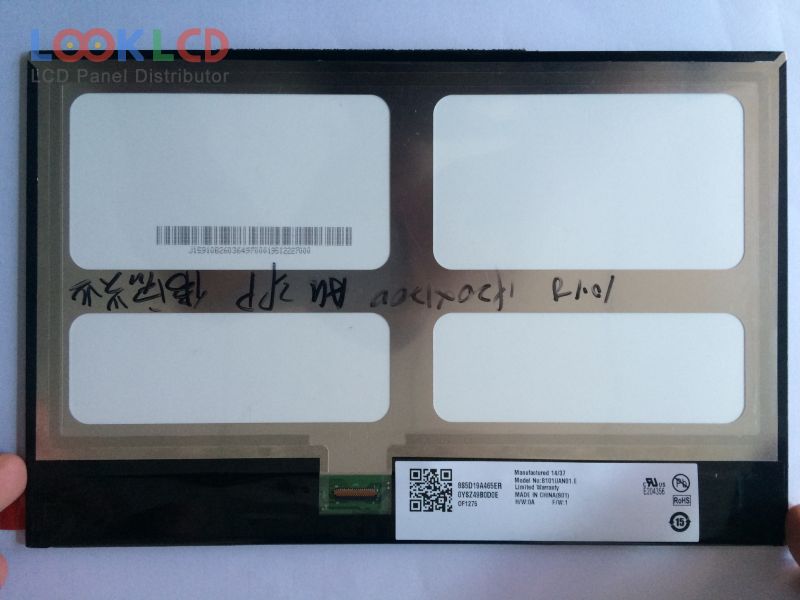

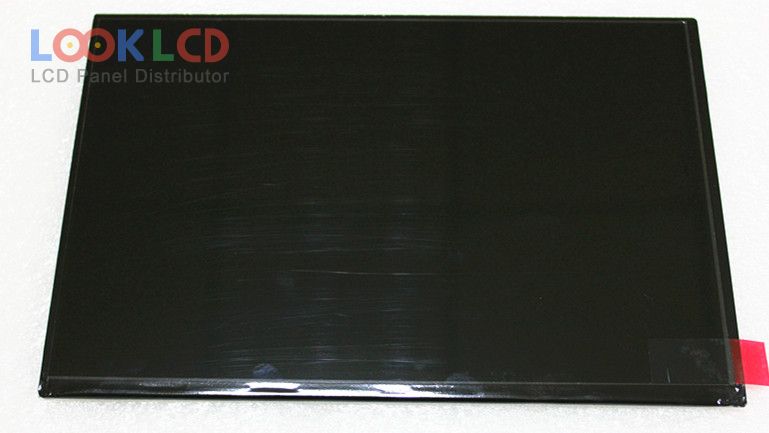

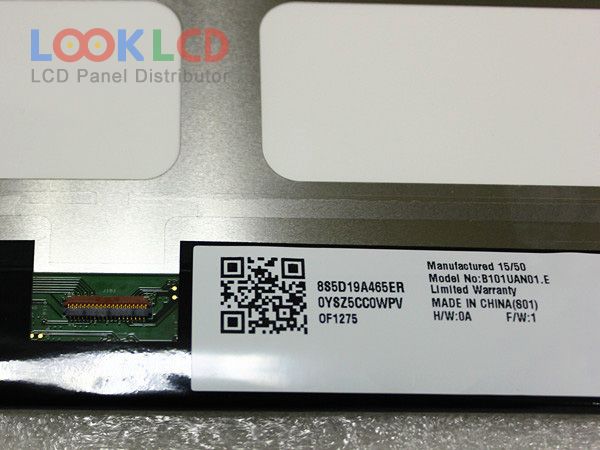

| PartNumber | B101UAN01.E |
| Marca | AUO |
| mărimea | 10.1 |
| Aplicație | PAD |
| Rezoluţie | 1920×1200 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | MIPI |
| marca panoului | AUO |
| model de panou | B101UAN01.E |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.1 inch |
| rezoluţie | 1920(RGB)×1200 , WUXGA |
| modul de afișare | AHVA, Normally Black, Transmissive |
| Zonă activă | 216.81×135.5 mm |
| contur | 227.72×148.66×4.4 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6 stringsWLEDWithout Driver |
| interfață de semnal | MIPI (4 data lanes), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| TPF0702002N | JDI | 7.0 | 1200×1920 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
