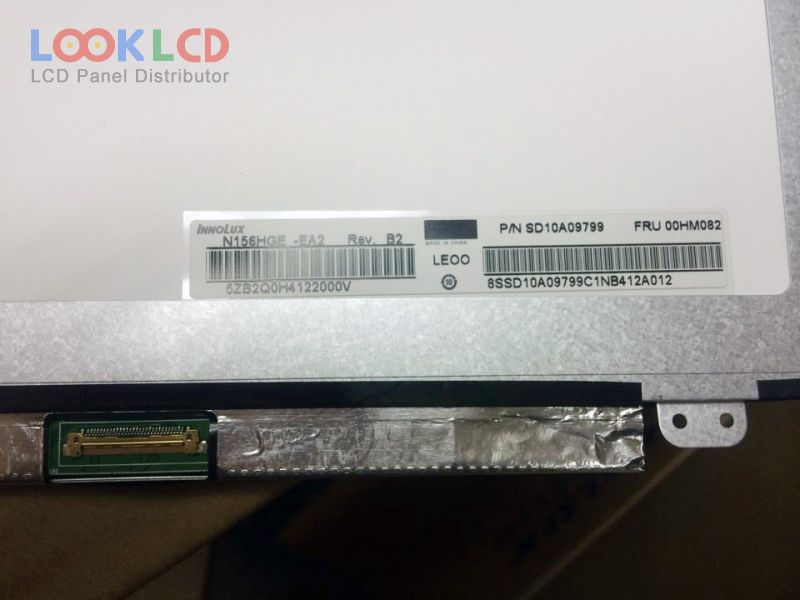

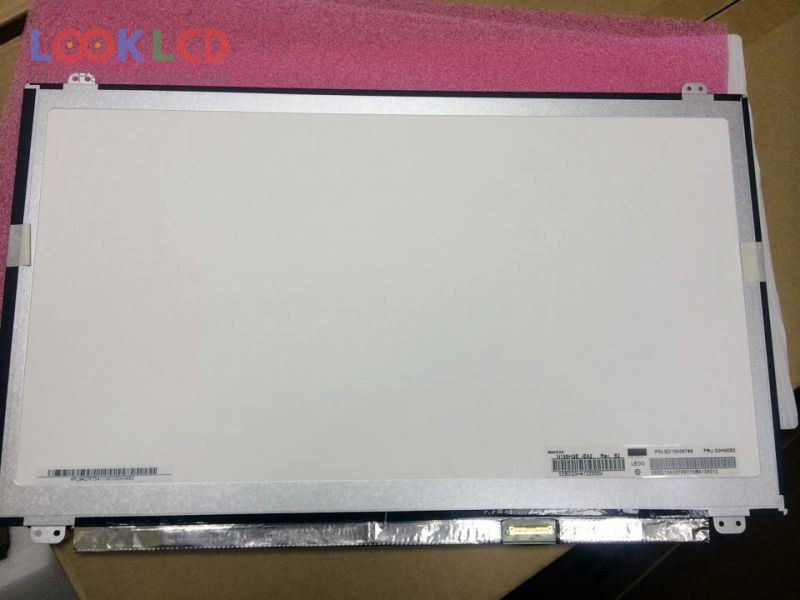

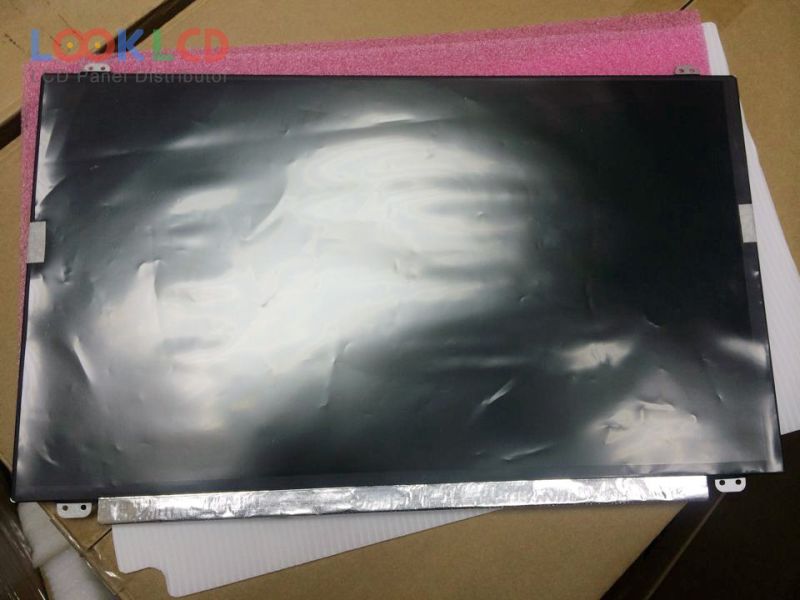

| PartNumber | N156HGE-EA2 |
| Marca | Innolux |
| mărimea | 15.6 |
| Aplicație | NBPC |
| Rezoluţie | 1920×1080 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | eDP |
| marca panoului | INNOLUX |
| model de panou | N156HGE-EA2 12 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 15.6 inch |
| rezoluţie | 1920(RGB)×1080 , FHD |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 344.16×193.59 mm |
| contur | 359.5×223.8×3.2 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Antiglare (Haze 24%), Hard coating (3H) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 3/8 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | eDP (2 Lanes), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| LP156WF3-SLB2 | LG Display | 15.6 | 1920×1080 |
| LTN156KT02-301 | Samsung | 15.6 | 1600×900 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
| B101XTN01.1 | AUO | 10.1 | 1366×768 |
| B125HAN02.2 | AUO | 12.5 | 1920×1080 |
| B154PW02 V1 | AUO | 15.4 | 1440×900 |
| LP101WH1-TLB2 | LG Display | 10.1 | 1366×768 |
| LP154WX4-TLC3 | LG Display | 15.4 | 1280×800 |
| LTM12C278F | TOSHIBA | 12.1 | 800×600 |
| LTN133AT03-001 | Samsung | 13.3 | 1280×800 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| M133NWF2 R0 | IVO | 13.3 | 1920×1080 |
| N140BGE-LB2 | Innolux | 14.0 | 1366×768 |
