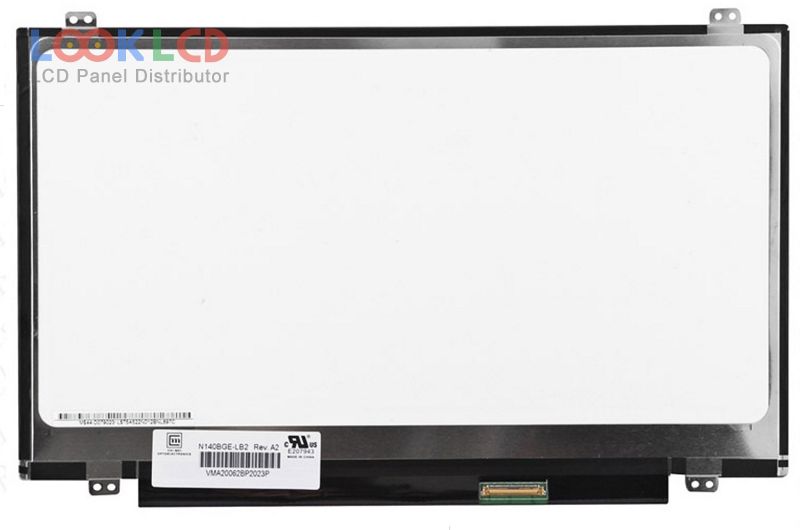

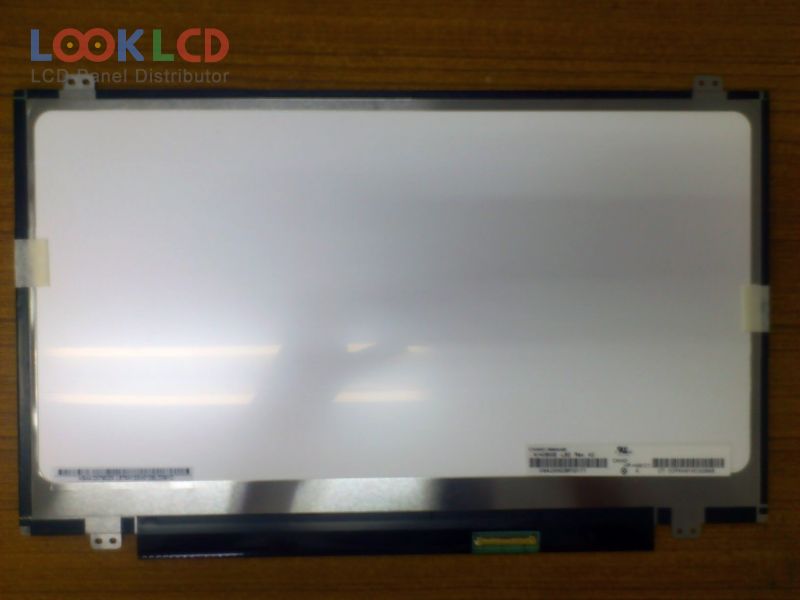

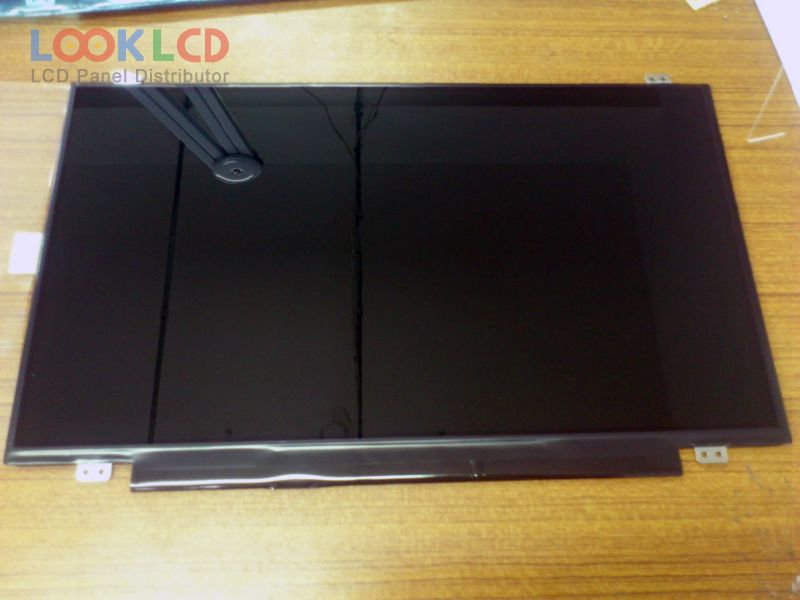

| PartNumber | N140BGE-LB2 |
| Marca | Innolux |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 650:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |
| model de panou | N140BGE-LB2 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.399×173.952 mm |
| contur | 320.4×205.1×3 mm |
| stilul formei | Slim (PCBA Flat, Depth ≤3.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 650:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193146% |
| timp de raspuns | 4/6 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L22 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| B133HAT02.5 | AUO | 13.3 | 1920×1080 |
| B133XW02 V0 | AUO | 13.3 | 1366×768 |
| B141XN04 V2 | AUO | 14.1 | 1024×768 |
| LP133WH1-TLB1 | LG Display | 13.3 | 1366×768 |
| LP141WX5-TLP2 | LG Display | 14.1 | 1280×800 |
| LTN140AT20-301 | Samsung | 14.0 | 1366×768 |
| LTN160AT01-A05 | Samsung | 16.0 | 1366×768 |
| N134B6-L02 | Innolux | 13.4 | 1366×768 |
| N156B6-L0A | Innolux | 15.6 | 1366×768 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
