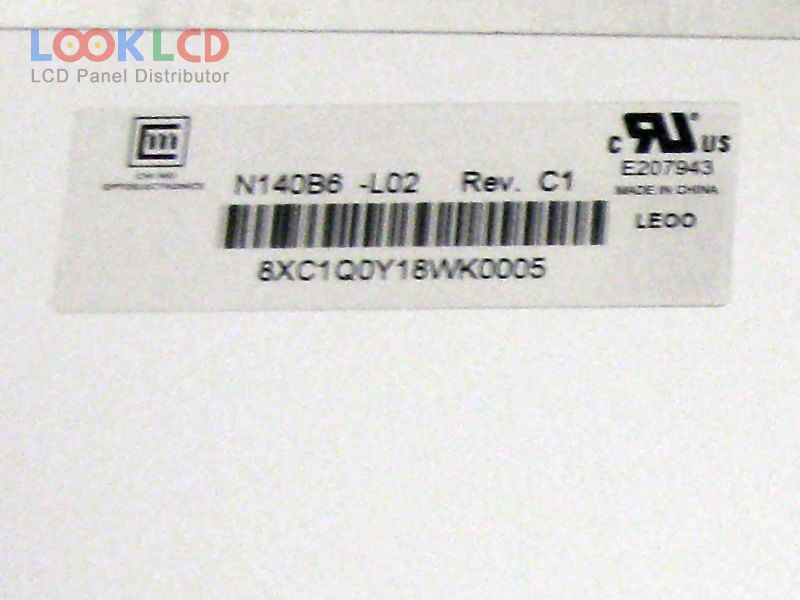

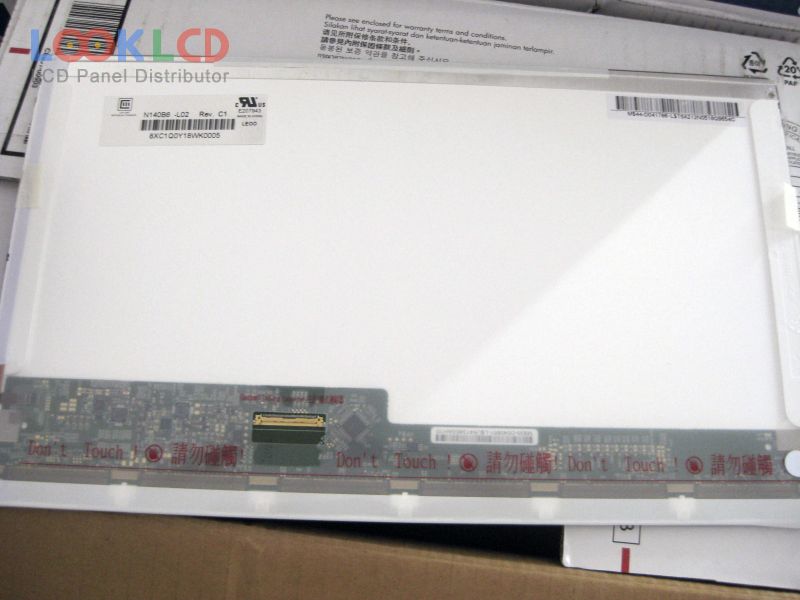

| PartNumber | N140B6-L02 |
| Marca | Innolux |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 220 |
| CR | 650:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CMO |
| model de panou | N140B6-L02 30 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.399×173.952 mm |
| contur | 323.5×192×5.2 mm |
| stilul formei | Wedge (PCBA Bent, Depth ≥5.2mm) |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 650:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 2/6 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/20/45 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S6PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L02 | Innolux | 14.0 | 1366×768 |
| N140BGE-E33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-L41 | Innolux | 14.0 | 1366×768 |
| N140BGN-E42 | Innolux | 14.0 | 1366×768 |
| B141EW04 V3 | AUO | 14.1 | 1280×800 |
| HB140FH1-301 | BOE | 14.0 | 1920×1080 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| LM12S029 | SHARP | 12.1 | 800×600 |
| LP140WF1-SPB1 | LG Display | 14.0 | 1920×1080 |
| LP140WH1-TLA3 | LG Display | 14.0 | 1366×768 |
| LP150X05-A2M2 | LG Display | 15.0 | 1024×768 |
| LP156WHB-TLA1 | LG Display | 15.6 | 1366×768 |
| LTD133EV2F | TOSHIBA | 13.3 | 1280×800 |
| LTM09C362F | TOSHIBA | 8.9 | 1024×600 |
