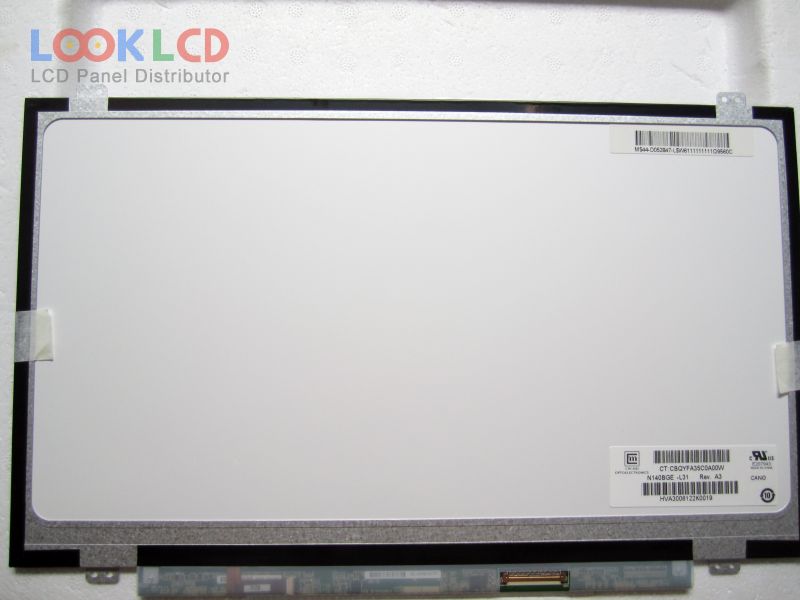

| PartNumber | N140BGE-L31 |
| Marca | Innolux |
| mărimea | 14.0 |
| Aplicație | NBPC |
| Rezoluţie | 1366×768 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CHIMEI INNOLUX |

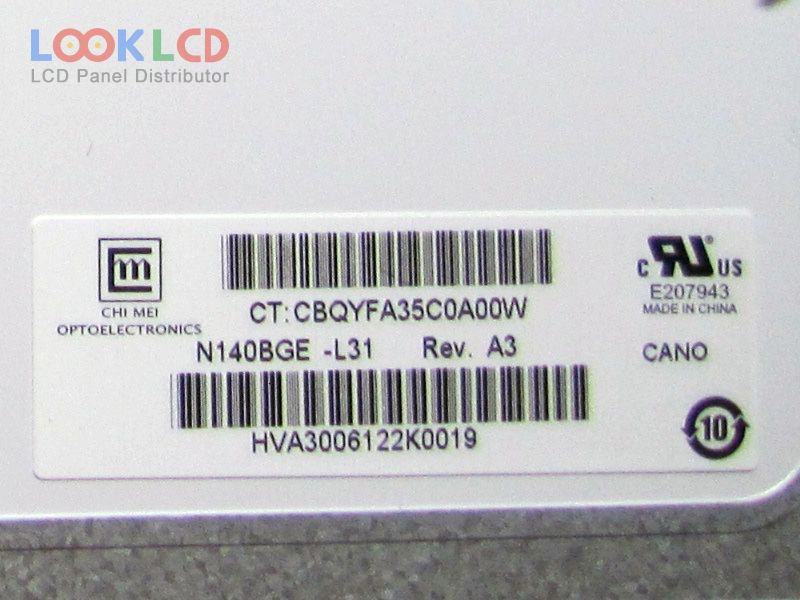

| model de panou | N140BGE-L31 7 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 14.0 inch |
| rezoluţie | 1366(RGB)×768 , WXGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 309.399×173.952 mm |
| contur | 320.4×205.1×3.6 mm |
| stilul formei | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 3/8 (Typ.)(Tr/Td) |
| unghi de vedere | 45/45/15/30 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |

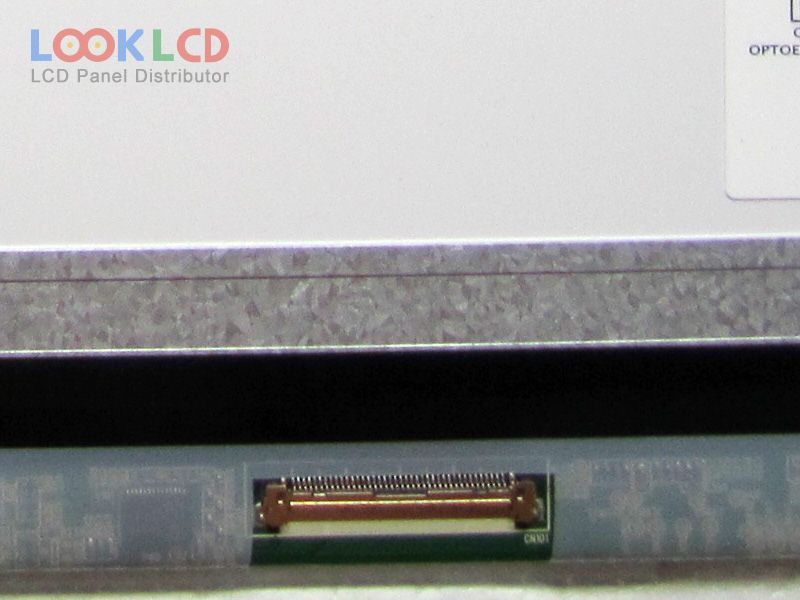

| interfață de semnal | LVDS (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | NBPC |
| N140B6-D11 | Innolux | 14.0 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N140BGE-L12 | Innolux | 14.0 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N140BGE-L23 | Innolux | 14.0 | 1366×768 |
| N140BGE-L31 | Innolux | 14.0 | 1366×768 |
| N140BGE-L32 | Innolux | 14.0 | 1366×768 |
| N140BGE-L33 | Innolux | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| N140BGK-L33 | Innolux | 14.0 | 1366×768 |
| B141EW04 V7 | AUO | 14.1 | 1280×800 |
| LP140WH2-TLL1 | LG Display | 14.0 | 1366×768 |
| LP154W02-B1K6 | LG Display | 15.4 | 1680×1050 |
| LP154WX7-TLB1 | LG Display | 15.4 | 1280×800 |
| LP156WH1-TLC2 | LG Display | 15.6 | 1366×768 |
| LTD121EWRF | TOSHIBA | 12.1 | 1280×800 |
| LTN141AT09-101 | Samsung | 14.1 | 1280×800 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN170WX-L06 | Samsung | 17.0 | 1440×900 |
| N156BGE-EA1 | Innolux | 15.6 | 1366×768 |
