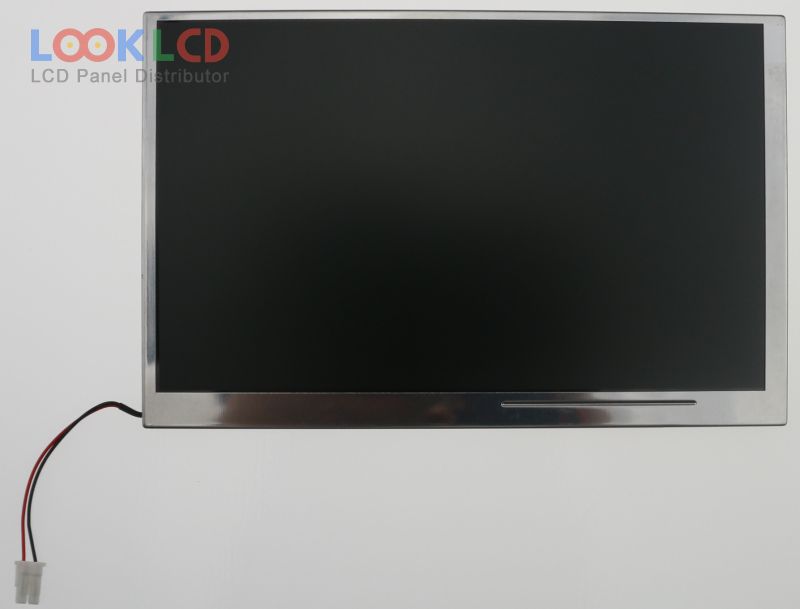

| PartNumber | AM-800480RCTMQW-00H |
| Marca | AMPIRE |
| mărimea | 7.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 1000 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AMPIRE |
| model de panou | AM-800480RCTMQW-00H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×106×9.06 mm |
| suprafaţă | |
| luminozitatea | 1000 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 5/11 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S3PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
| AM-800480-050D | Other | 5.0 | 800×480 |
| AM-800480LATMQW-TN0H | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AM-800480LTMQW-W0H | AMPIRE | 5.0 | 800×480 |
| AM-800480R3TMQW-B2H | AMPIRE | 7.0 | 800×480 |
| AM-800480RCTMQW-00H | AMPIRE | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| AM-800480RWTMQW-TA4H | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AM-800480STMQW-W0 | AMPIRE | 7.0 | 800×480 |
| AA121XJ02 | Mitsubishi | 12.1 | 1024×768 |
| AA121XK01 | Mitsubishi | 12.1 | 1024×768 |
| EL320.240.36 HB CCB | Lumineq | 5.7 | 320×240 |
| G084SN03 V0 | AUO | 8.4 | 800×600 |
| LQ104V1DG59 | SHARP | 10.4 | 640×480 |
| LT121EE01000 | TOSHIBA | 12.1 | 1280×800 |
| LTM10C209AF | TOSHIBA | 10.4 | 640×480 |
| NL12876BC26-28 | NLT | 15.3 | 1280×768 |
| NL8060BC31-02 | NLT | 12.1 | 800×600 |
| RGS08096032WR001 | RiTdisplay | 0.80 | 96×32 |
