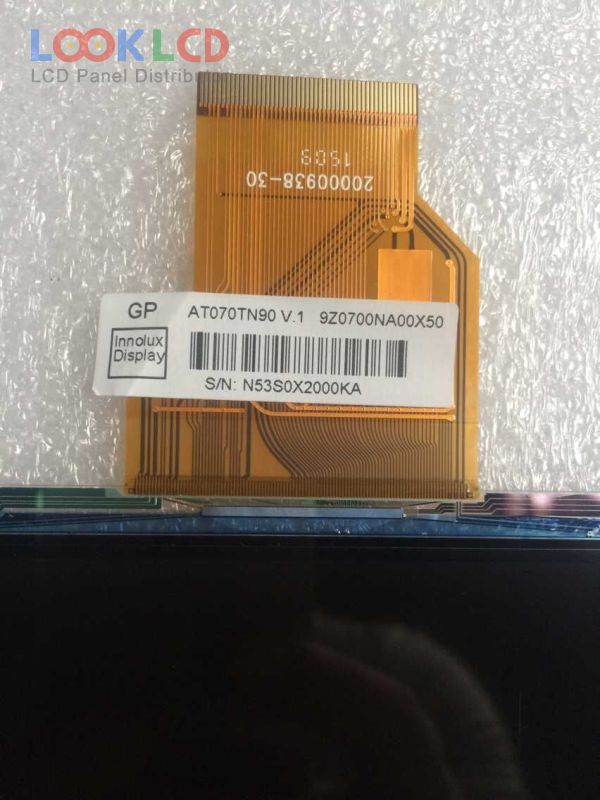

AT070TN90 V.1


Marca
Innolux
mărimea
7.0
Aplicație
DPF
Rezoluţie
800×480
Compoziţie
CELL
Luminozitate
0
CR
500:1
Culori
262K/16.7M
Iluminare de fundal
No B/L
Interfață
TTL
In Stock
43553
Specificații

PartNumber AT070TN90 V.1
MarcaInnolux
mărimea7.0
AplicațieDPF
Rezoluţie800×480
CompoziţieCELL
Luminozitate0
CR500:1
Culori262K/16.7M
Iluminare de fundalNo B/L
InterfațăTTL
marca panouluiCHIMEI INNOLUX
model de panouAT070TN90 V.1
tip panou a-Si TFT-LCD , CELL
dimensiunea panoului7.0 inch
rezoluţie800(RGB)×480 , WVGA
modul de afișareTN, Normally White, Transmissive
Zonă activă154.08×85.92 mm
contur162.5×96.62 mm
suprafaţăAntiglare
adâncimea sticlei0.50+0.50 mm
transmisivitatea5.11% (Typ.)(with Polarizer)
Raport de contrast500:1 (Typ.)
culorile afișajului262K/16.7M (6-bit / 6-bit + Dithering)
timp de raspuns10/15 (Typ.)(Tr/Td)
unghi de vedere70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
frecvență60Hz
interfață de semnalParallel RGB (1 ch, 8-bit), 50 pins
tensiune de intrare3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
aplicareaDPF
