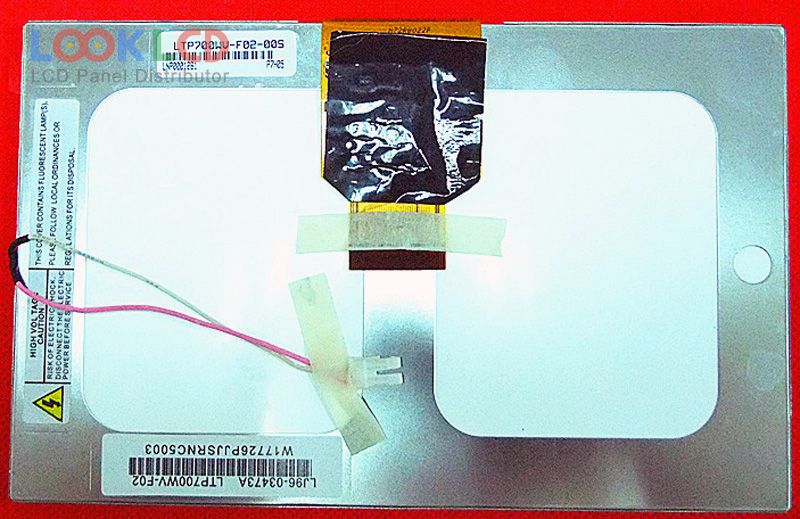

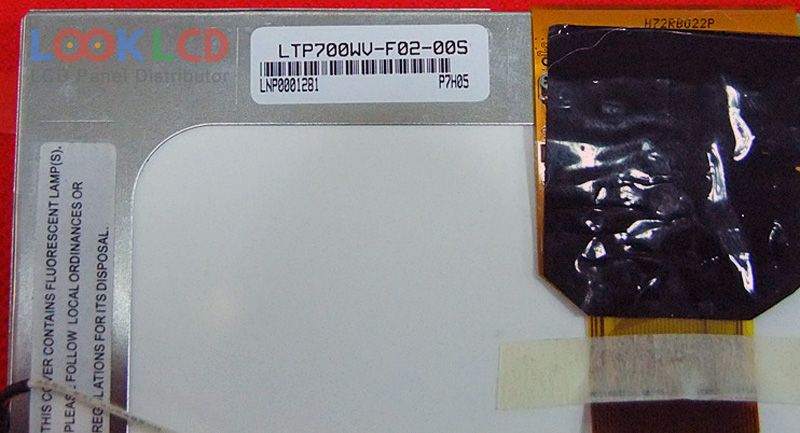

| PartNumber | LTP700WV-F02 |
| Marca | Samsung |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | SAMSUNG |
| model de panou | LTP700WV-F02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800×480(RGB) , WVGA |
| modul de afișare | TN, Normally White, TMR |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×104×5.7 mm |
| suprafaţă | |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 300 : 1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193158% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| rohs: | |
| aplicarea | DPF |
