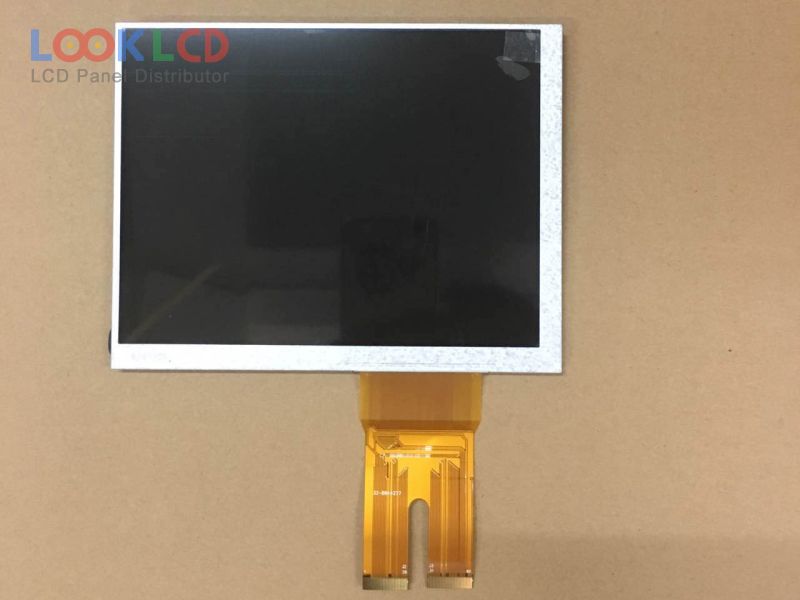

| PartNumber | Q07021-701 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CHIMEI INNOLUX |
| model de panou | Q07021-701 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 141.6×106.2 mm |
| contur | 154×119.2×5.25 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| timp de raspuns | 5/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/12.0V (Typ.)(VCC/VDD) |
| aplicarea | DPF |
| A070SN01 V3 | AUO | 7.0 | 800×600 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| LTL070AL01-L01 | Samsung | 7.0 | 1280×800 |
| NDS0708001280-31 | SEBO | 7.0 | 800×1280 |
| PW070DS1T6 | E Ink | 7.0 | 480×234 |
| Q07021-701 | Innolux | 7.0 | 800×600 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| A104SN01 V0 | AUO | 10.4 | 800×600 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| HSD100IFW1-A02 | HannStar | 10.1 | 1024×600 |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| LTA104S1-L01 | Samsung | 10.4 | 800×600 |
| TM070RDH10 | Tianma | 7.0 | 800×480 |
