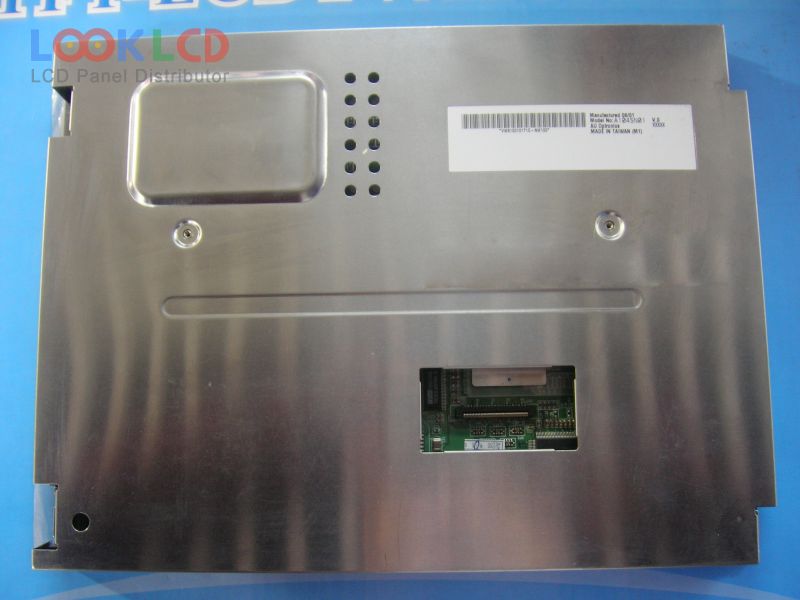

| PartNumber | A104SN01 V0 |
| Marca | AUO |
| mărimea | 10.4 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | LVDS |
| marca panoului | AU Optronics |
| model de panou | A104SN01 V0 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 10.4 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 211.2×158.4 mm |
| contur | 243×184 mm |
| suprafaţă | |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 2 pcsCCFLEmbedded (Inverter) |
| interfață de semnal | LVDS (1 ch, 6-bit), 42 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | DPF |
| A104SN01 V0 | AUO | 10.4 | 800×600 |
| A104SN03 V0 | AUO | 10.4 | 800×600 |
| A104SN03 V1 | AUO | 10.4 | 800×600 |
| CLAA104XA12BW | CPT | 10.4 | 1024×768 |
| G104SN02 V2 | AUO | 10.4 | 800×600 |
| G104X1-L03 | Innolux | 10.4 | 1024×768 |
| LM-CC53-22NDK | SANYO | 10.4 | 640×480 |
| LQ10D010 | SHARP | 10.4 | 640×480 |
| LQ10D42 | SHARP | 10.4 | 640×480 |
| NL6448BC33-74 | NLT | 10.4 | 640×480 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT056TN52 V.3 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| HSD100IXN1-A00 | HannStar | 10.0 | 1024×768 |
| LB070WV1-TD12 | LG Display | 7.0 | 800×480 |
| LQ070Y3DG04 | SHARP | 7.0 | 800×480 |
| LSA40AT9001 | Innolux | 10.4 | 800×600 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
