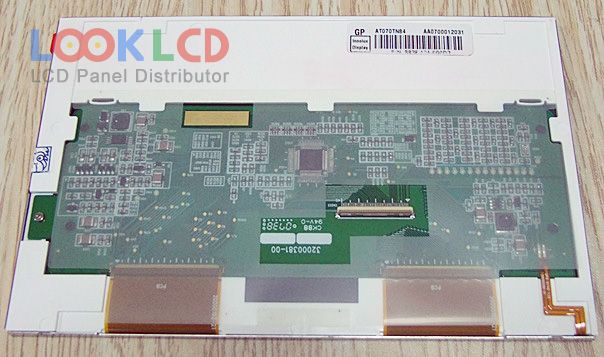

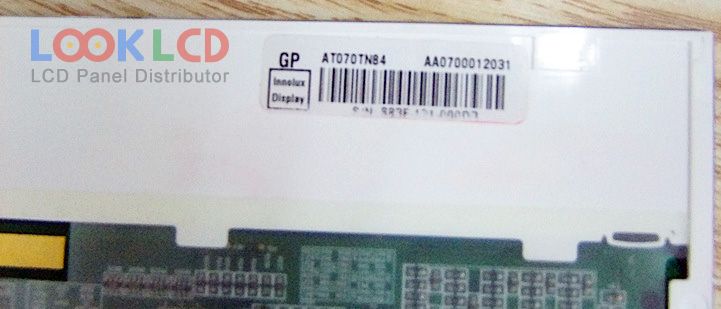

| PartNumber | AT070TN84 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | INNOLUX |
| model de panou | AT070TN84 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×104×5.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | TTL (1 ch, 6-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.)(VCC) |
| aplicarea | DPF |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.4 | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A080SN03 V3 | AUO | 8.0 | 800×600 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LTP700WV-F02 | Samsung | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
| TM102WV-A02-03 | SANYO | 10.2 | 800×480 |
