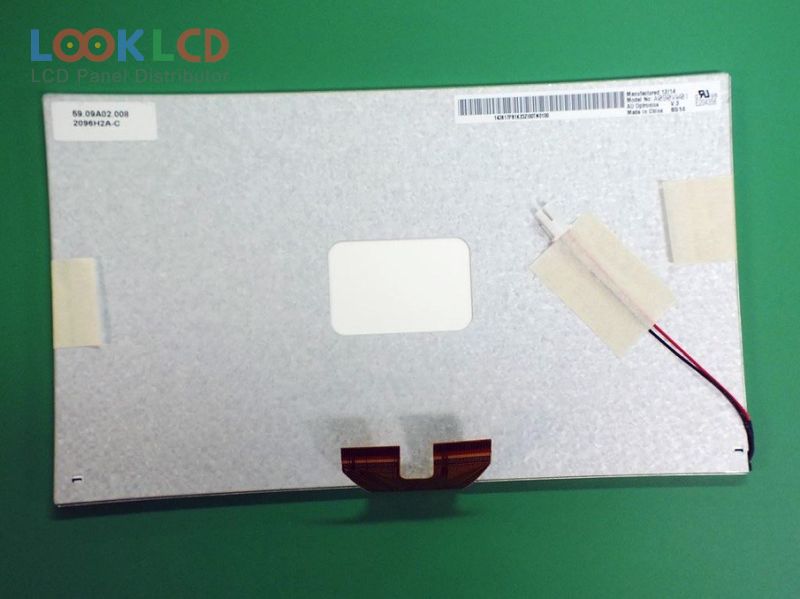

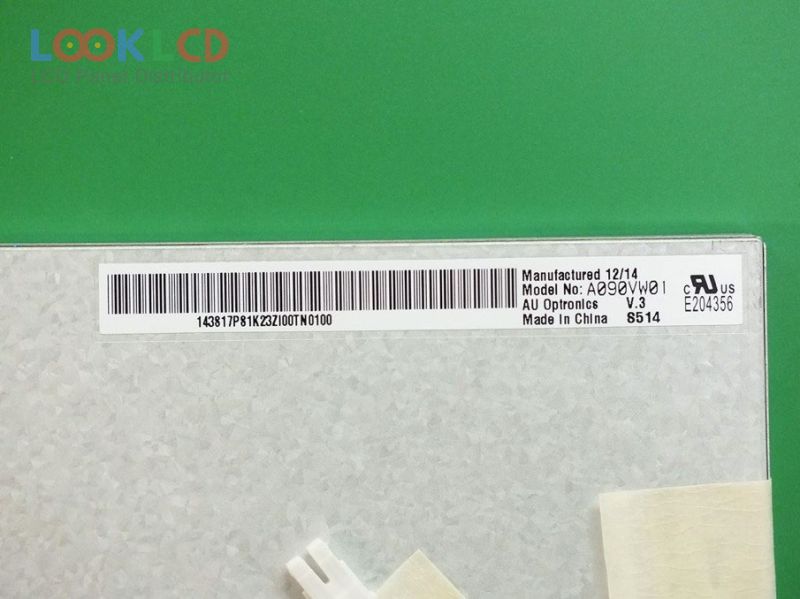

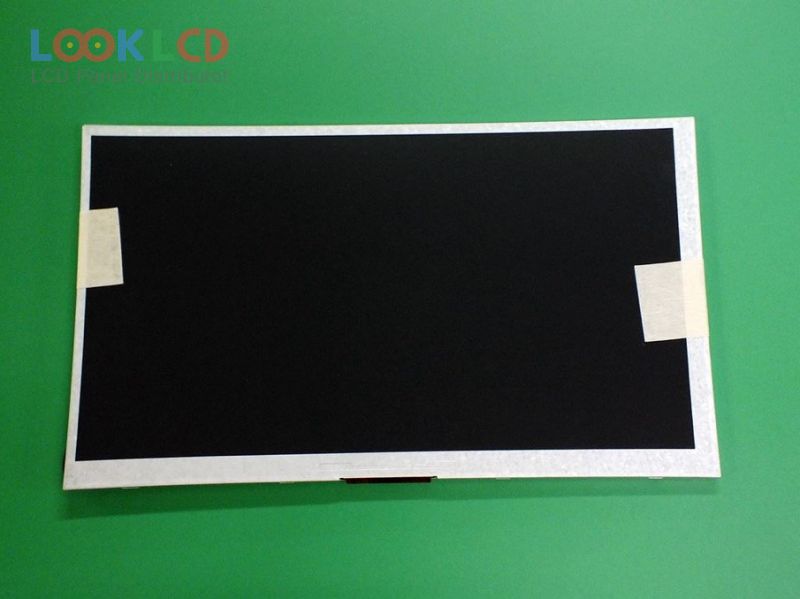

| PartNumber | A090VW01 V3 |
| Marca | AUO |
| mărimea | 9.0 |
| Aplicație | DPF |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A090VW01 V3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 800×480(RGB) , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 199.2×110.16 mm |
| contur | 211.7×125 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193148% |
| timp de raspuns | 4/12 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/55/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S8PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 8-bit) + SPI, 68 pins |
| tensiune de intrare | 3.3/5.5/-5.5/10/-13V (Typ.)(VCC/VDPA/VDNA/VGH/VGL) |
| aplicarea | DPF |
