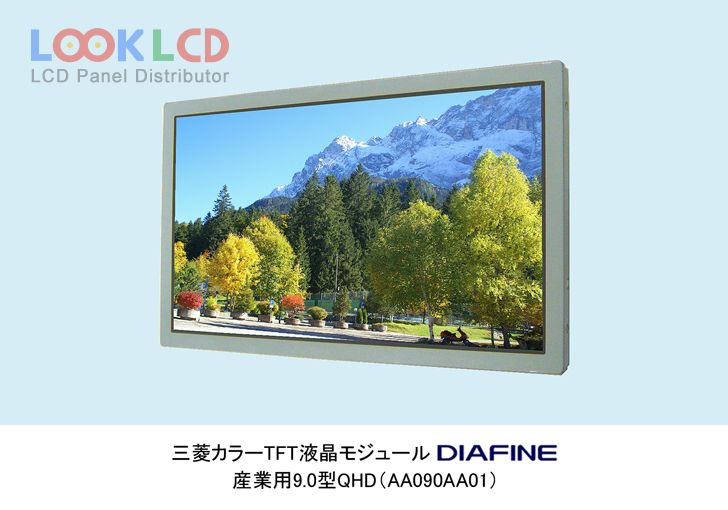

| PartNumber | AA090AA01 |
| Marca | Mitsubishi |
| mărimea | 9.0 |
| Aplicație | IA |
| Rezoluţie | 960×540 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 1000:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Mitsubishi |
| model de panou | AA090AA01 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 960(RGB)×540 , qHD |
| modul de afișare | IPS, Normally Black, Transmissive |
| Zonă activă | 198.72×111.78 mm |
| contur | 217×130 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 1000:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193172% |
| timp de raspuns | 8/8 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
