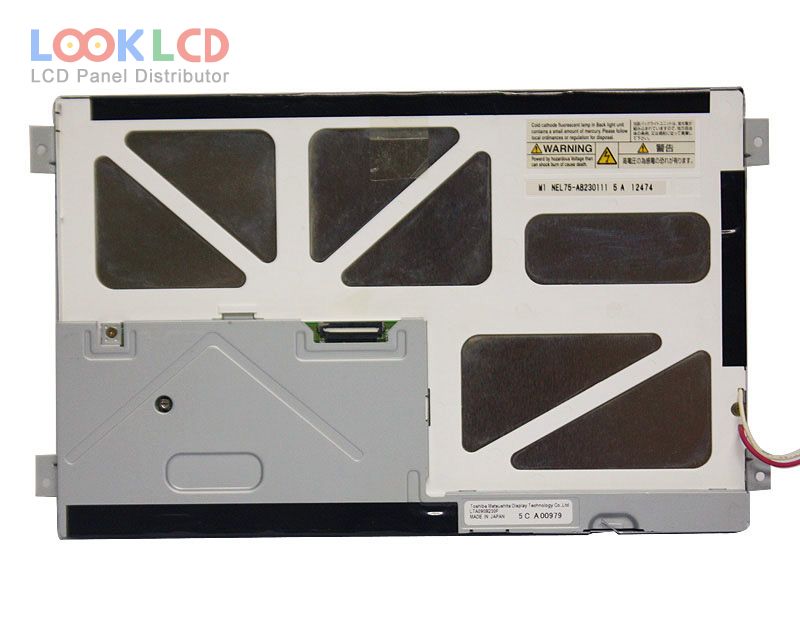

| PartNumber | LTA090B230F |
| Marca | TOSHIBA |
| mărimea | 9.0 |
| Aplicație | IA |
| Rezoluţie | 536×328 |
| Compoziţie | LCM |
| Luminozitate | 480 |
| CR | 250:1 |
| Culori | 262K |
| Iluminare de fundal | CCFL |
| Interfață | TTL |
| marca panoului | Toshiba Matsushita |
| model de panou | LTA090B230F |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 536(RGB)×328 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 196.18×120.05 mm |
| contur | 212.2×135.2 mm |
| suprafaţă | Clear |
| luminozitatea | 480 cd/m² (Typ.) |
| Raport de contrast | 250:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 70/40 (Max.)(Tr/Td) |
| unghi de vedere | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 1 pcsCCFLWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
