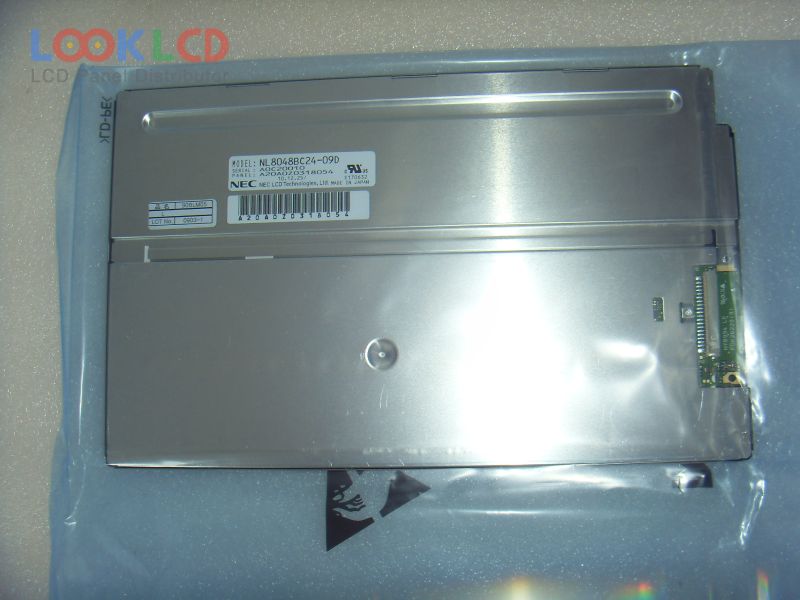

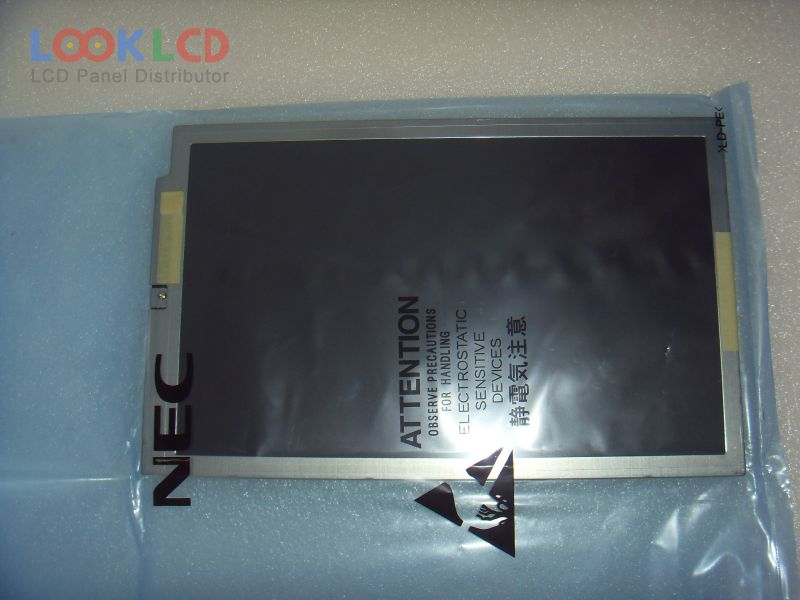

| PartNumber | NL8048BC24-09D |
| Marca | NLT |
| mărimea | 9.0 |
| Aplicație | IA |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 400 |
| CR | 800:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | NEC |
| model de panou | NL8048BC24-09D |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | UA-SFT, Normally Black, Transmissive |
| Zonă activă | 196.8×118.08 mm |
| contur | 220.5×136.5×8.7 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 400 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3 stringsWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | IA |
