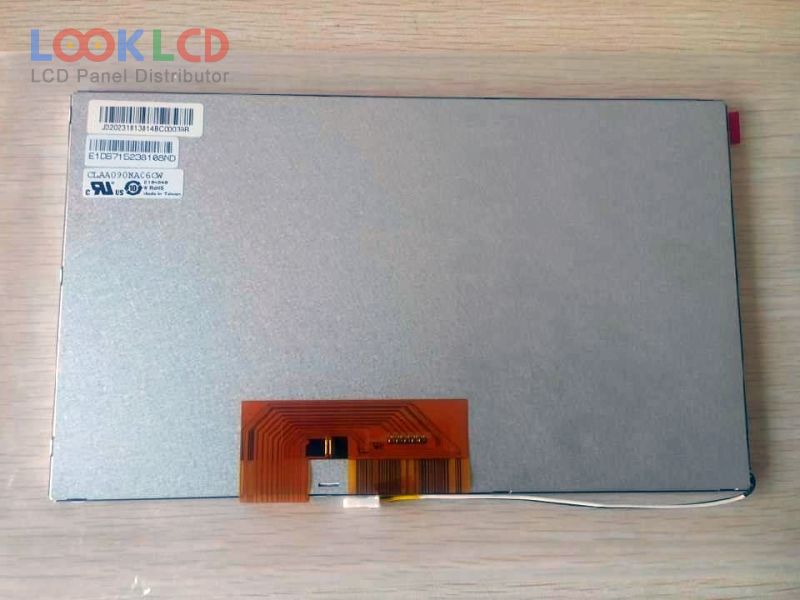

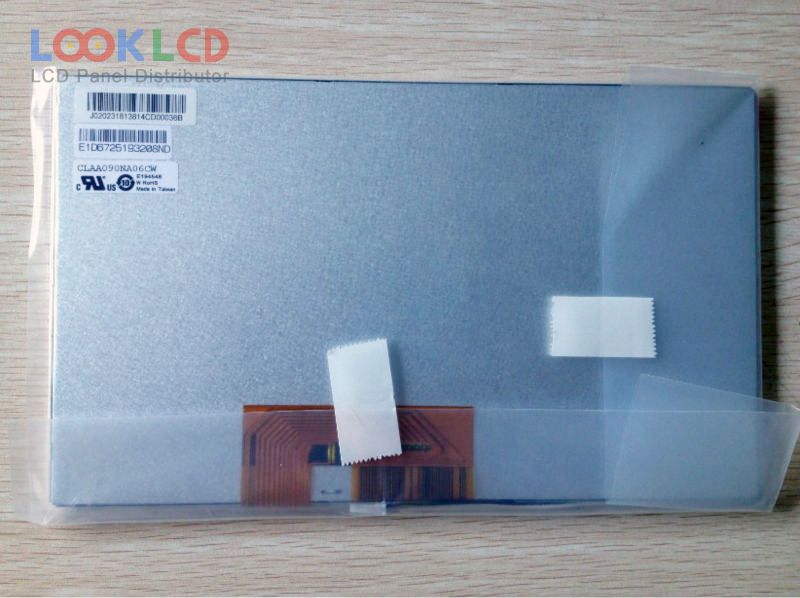

| PartNumber | CLAA090NA06CW |
| Marca | CPT |
| mărimea | 9.0 |
| Aplicație | CNS |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 800:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA090NA06CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 9.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 196.608×114.15 mm |
| contur | 211.1×126.5×6 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S13PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | CNS |
