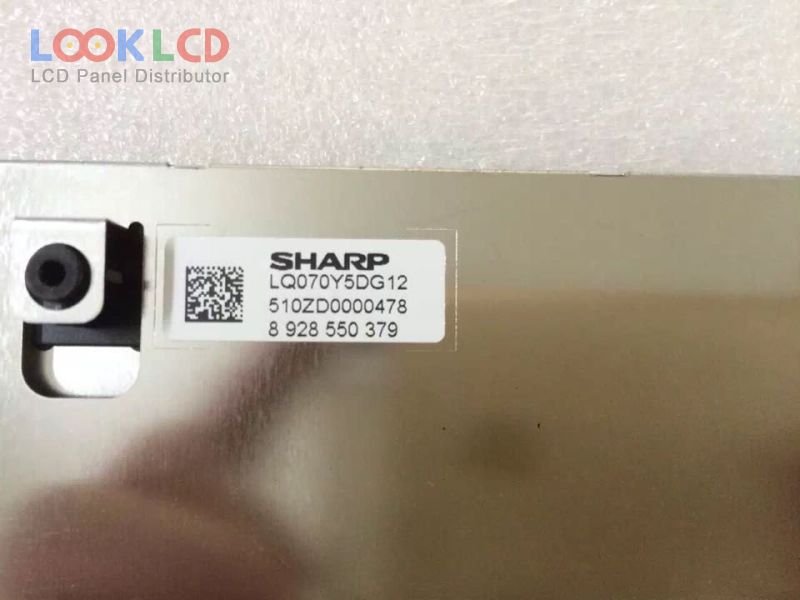

| PartNumber | LQ070Y5DG12 |
| Marca | SHARP |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ070Y5DG12 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| suprafaţă | Antiglare |
| luminozitatea | |
| Raport de contrast | |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | WLED |
| interfață de semnal | CMOS (1 ch, 6-bit) |
| aplicarea | CNS |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| LQ070T3AG02 | SHARP | 7.0 | 480×234 |
| LQ070T5AR01 | SHARP | 7.0 | 480×234 |
| LQ070T5DR06 | SHARP | 7.0 | 480×240 |
| LQ070Y3DG01 | SHARP | 7.0 | 800×480 |
| LQ070Y3LG4A | SHARP | 7.0 | 800×480 |
| LQ070Y5DG11 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LQ070Y5DG36 | SHARP | 7.0 | 800×480 |
| AM-800480RSTMQW-TA1H | AMPIRE | 7.0 | 800×480 |
| C070VVN03.1 | AUO | 7.0 | 800×480 |
| C070VW04 V2 | AUO | 7.0 | 800×480 |
| DJ065NA-01C | Innolux | 6.5 | |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| LA061WQ1-TD05 | LG Display | 6.1 | 480×272 |
| LQ065Y5DG03 | SHARP | 6.5 | 800×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| PW050XS3 | E Ink | 5.0 | 320×220 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
