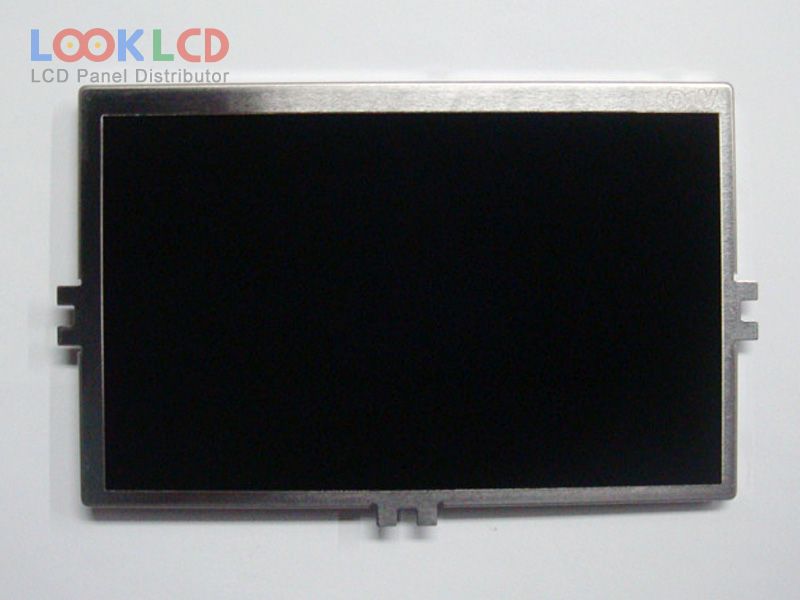

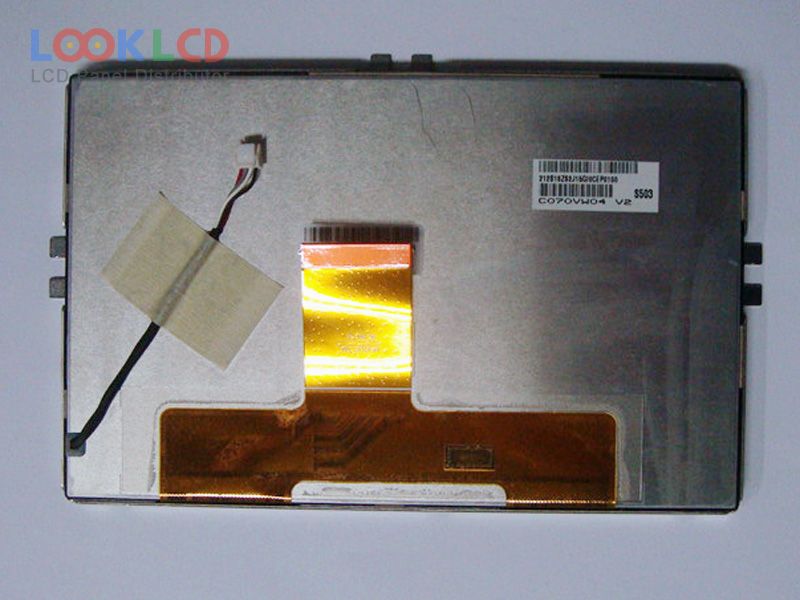

| PartNumber | C070VW04 V2 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 450 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | C070VW04 V2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | AMVA, Normally Black, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165.55×106.01×7.48 mm |
| suprafaţă | Antiglare, Antireflection |
| luminozitatea | 450 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193155% |
| timp de raspuns | 10/25 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S3PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 3.3/12.5/15.0/-9.0V (Typ.)(VDD/AVDD/VGHVGL) |
| aplicarea | CNS |
