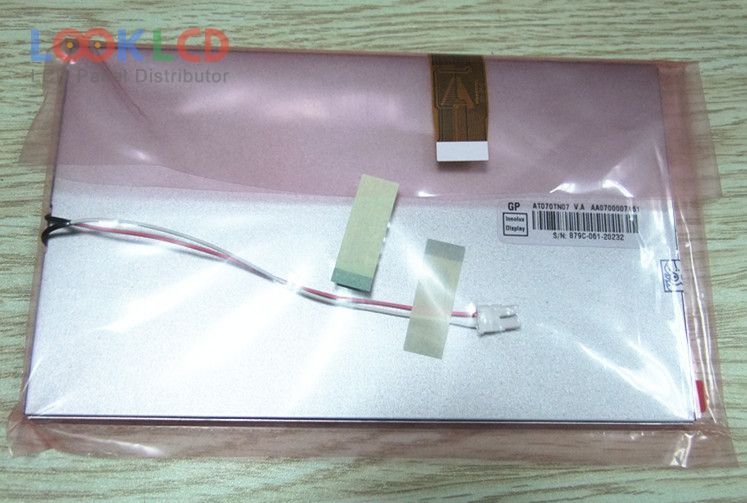

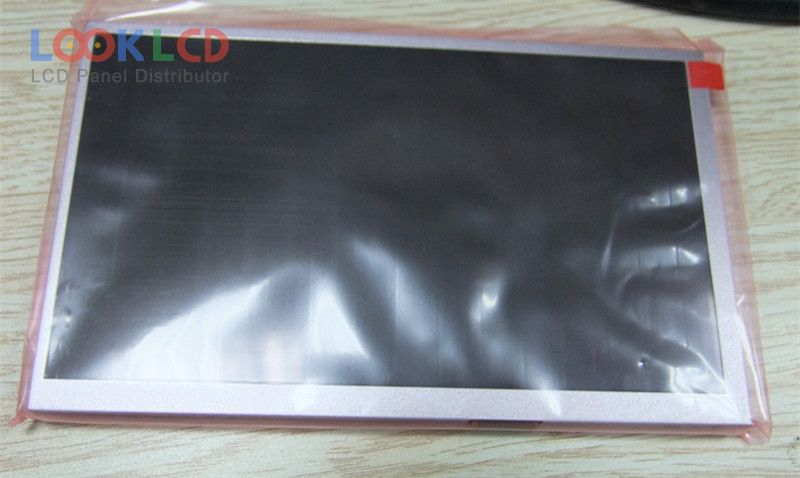

| PartNumber | AT070TN07 V.A |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | VDP |
| Rezoluţie | 480×234 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 300:1 |
| Culori | Full color |
| Iluminare de fundal | WLED |
| Interfață | Analog |
| marca panoului | INNOLUX |
| model de panou | AT070TN07 V.A |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 480(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×86.58 mm |
| contur | 164.9×100 mm |
| suprafaţă | Antiglare |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | Full color |
| timp de raspuns | 15/20 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 2S9PWLEDWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 26 pins |
| tensiune de intrare | (3.3/5.0)/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| aplicarea | VDP |
| AT070TN82 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT070TN90 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| AT070TNA2 V.1 | Innolux | 7.0 | 1024×600 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| A070FW03 V4 | AUO | 7.0 | 480×234 |
| AT050TN22 V.1 | Innolux | 5.0 | 640×480 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| HSD050I551-A00 | HannStar | 5.0 | 320×234 |
| LQ6AN101 | SHARP | 5.6 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
