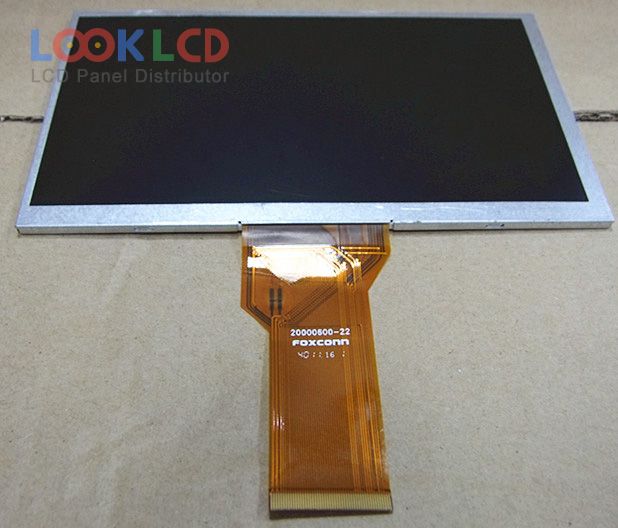

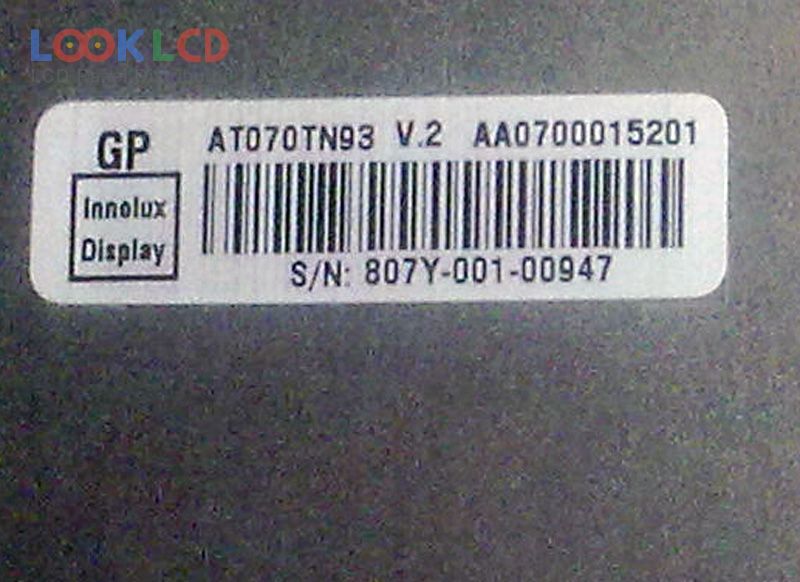

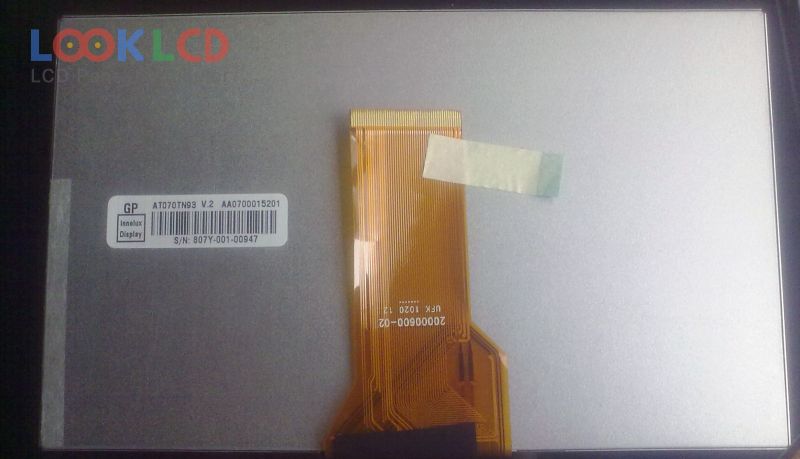

| PartNumber | AT070TN93 V.2 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | INNOLUX |
| model de panou | AT070TN93 V.2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 154.08×85.92 mm |
| contur | 164.9×100×3.65 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + Dithering) |
| timp de raspuns | 10/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S9PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
| AT070TN01 | Innolux | 7.0 | 480×234 |
| AT070TN07 V.A | Innolux | 7.0 | 480×234 |
| AT070TN07 V.D | Innolux | 7.0 | 480×234 |
| AT070TN82 | Innolux | 7.0 | 800×480 |
| AT070TN83 | Innolux | 7.0 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN84 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| A070VW04 V3 | AUO | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TNA2 V.1 | Innolux | 7.0 | 1024×600 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| EJ070NA-01J | Innolux | 7.0 | 1024×600 |
| LB070WV4-SD01 | LG Display | 7.0 | 800×480 |
| LB070WV6-TD08 | LG Display | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
