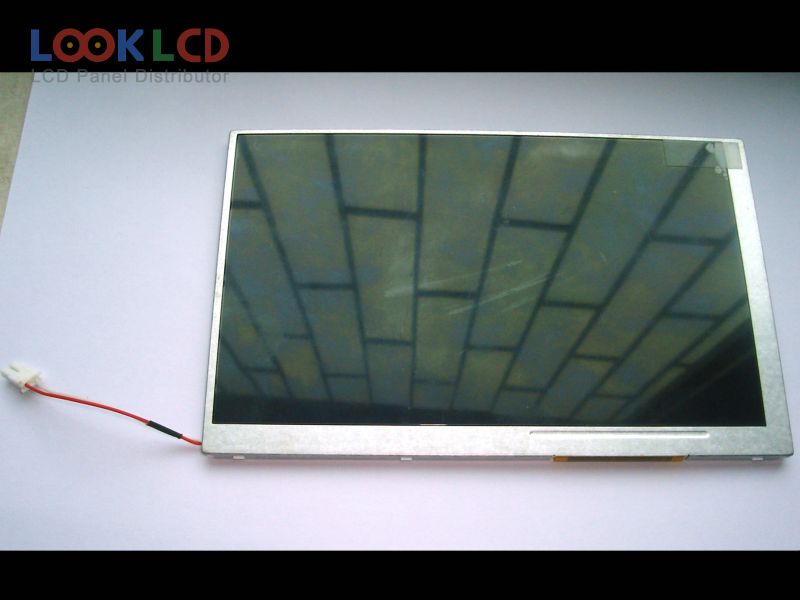

| PartNumber | LW700AT9009 |
| Marca | Innolux |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 400:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | ChiHsin |
| model de panou | LW700AT9009 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×104.4×5.5 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193145% |
| timp de raspuns | 5/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S5PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 8-bit), 60 pins |
| tensiune de intrare | 3.3/12.0/18.0/-7.0V (Typ.)(Vcc/AVDD/VGH/VGL) |
| aplicarea | MP4 |
