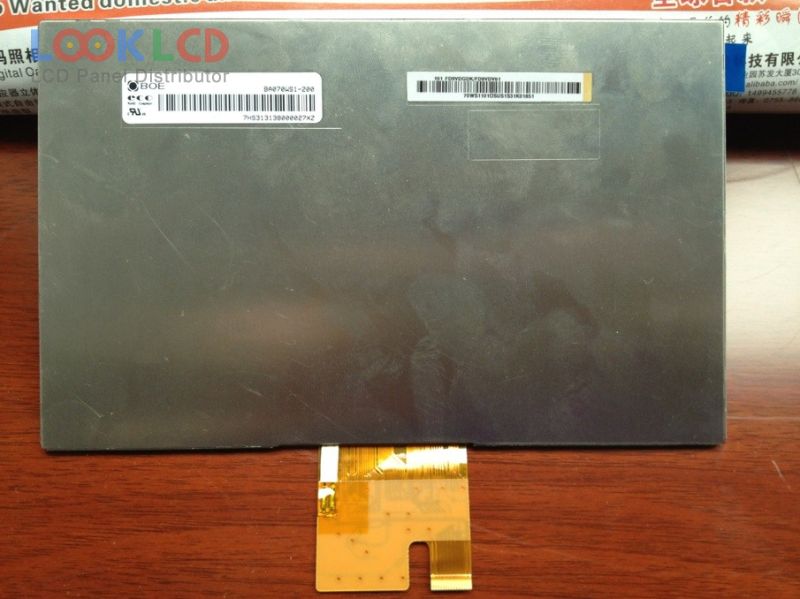

| PartNumber | BA070WS1-200 |
| Marca | BOE |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE |
| model de panou | BA070WS1-200 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 167.25×104.65×3 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 75/65/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 8-bit), 31 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | MP4 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| BA070WS1-300 | BOE | 7.0 | 1024×600 |
| BA070WS1-400 | BOE | 7.0 | 1024×600 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA069JA11CW | CPT | 7.0 | 480×234 |
| G070VTN01.0 | AUO | 7.0 | 800×480 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| A065VL01 V1 | AUO | 6.5 | 800×480 |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| HJ070NA-13A | Innolux | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LB070WV4-TJ01 | LG Display | 7.0 | 800×480 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| N070LGE-L41 | Innolux | 7.0 | 1024×600 |
