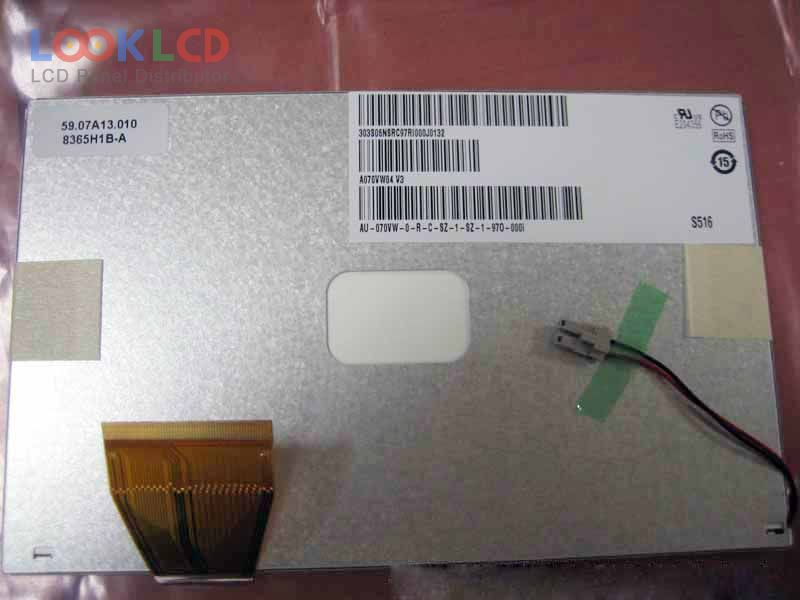

| PartNumber | A070VW04 V3 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 300:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A070VW04 V3 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 164×103×5.4 mm |
| suprafaţă | Antiglare |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 300:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 12/18 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S7PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| tensiune de intrare | 3.3/11/18/-7V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
