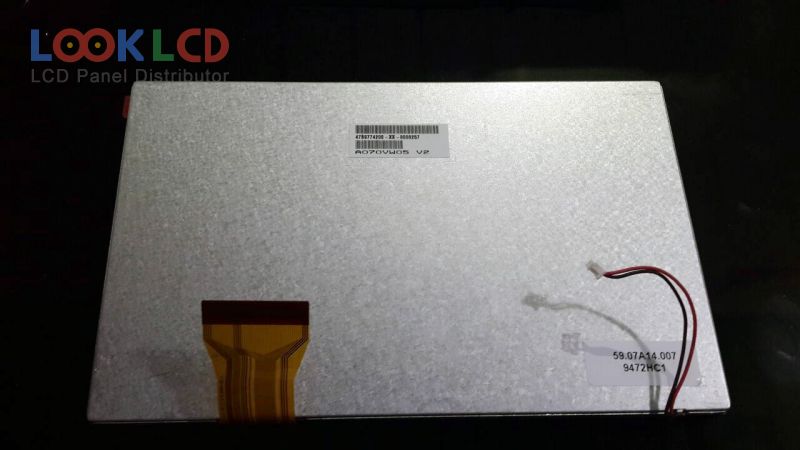

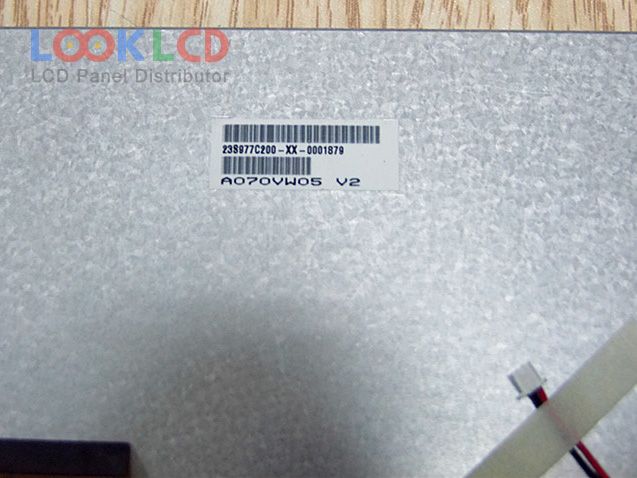

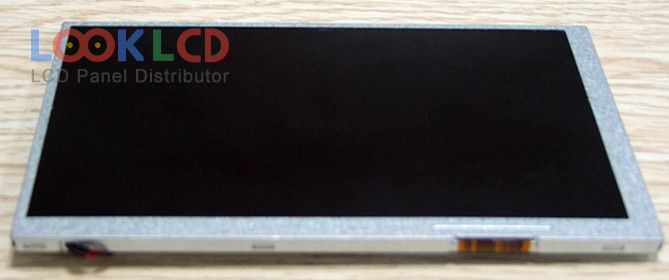

| PartNumber | A070VW05 V2 |
| Marca | AUO |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 375 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AUO |
| model de panou | A070VW05 V2 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×104×5.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 375 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 12/18 (Typ.)(Tr/Td) |
| unghi de vedere | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S9PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 50 pins |
| tensiune de intrare | 3.3/3.3/11/18/-8V (Typ.)(VDDIO/GVDDIO/AVDD/VGH/VGL) |
| rohs: | |
| aplicarea | CNS |
