Innolux AT070TN92 V.3 fișă de date, specificație, stocuri, aplicație www.looklcd-ro.com
LookLCD LookLCD

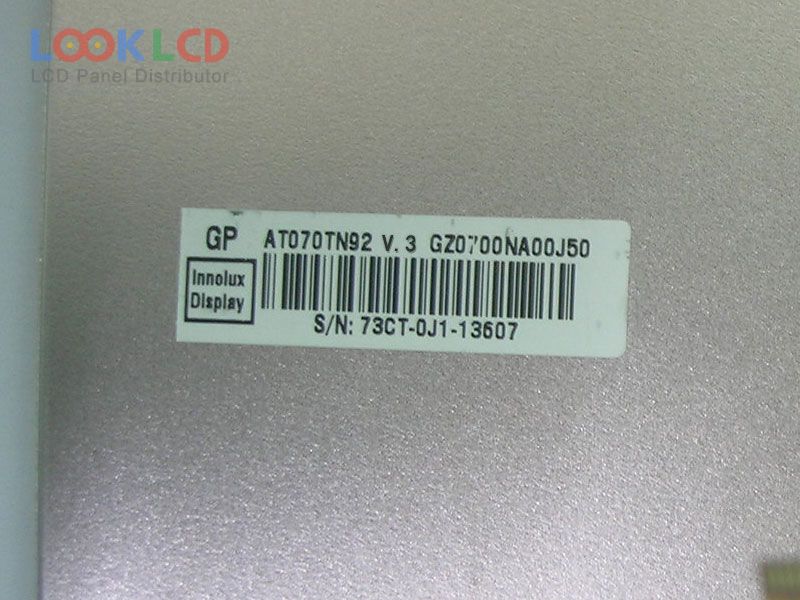

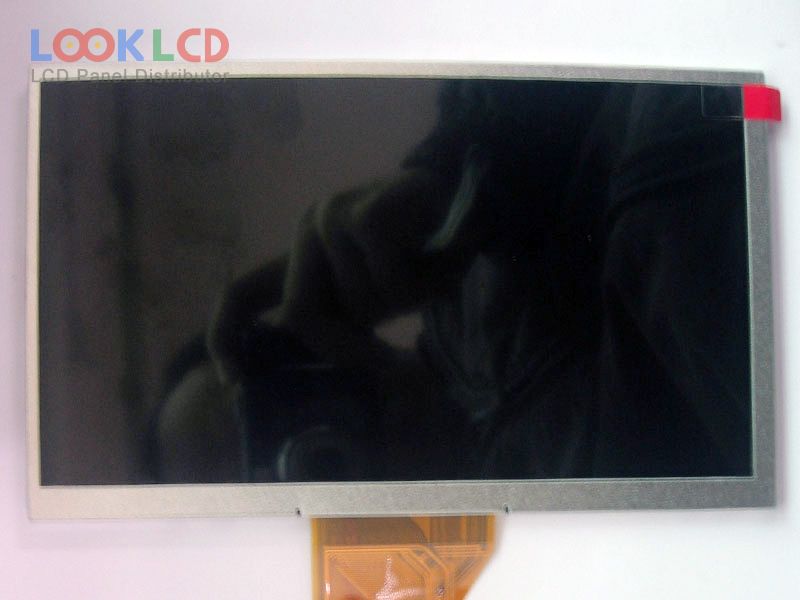

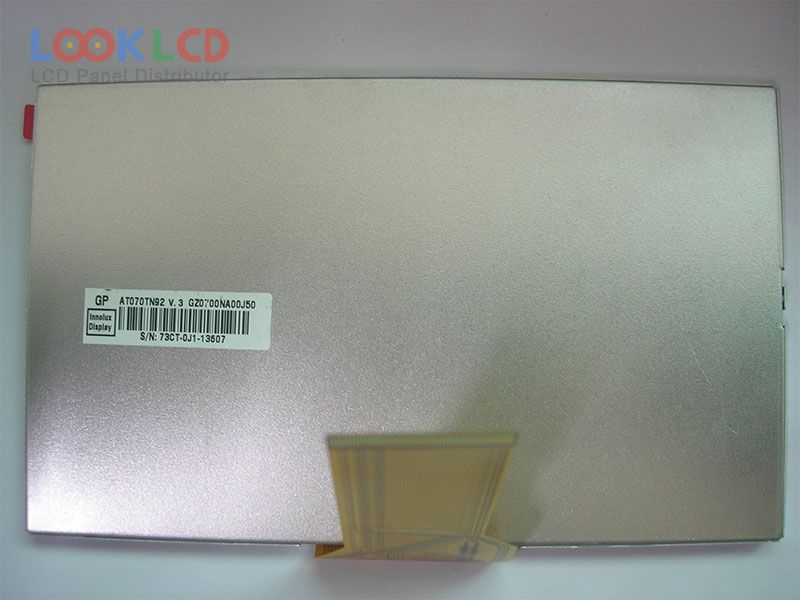

AT070TN92 V.3

AT070TN92 V.3
AT070TN92 V.3
AT070TN92 V.3
AT070TN92 V.3 thumb AT070TN92 V.3 thumb AT070TN92 V.3 thumb
Marca
Innolux
mărimea
7.0
Aplicație
MP4
Rezoluţie
800×480
Compoziţie
LCM
Luminozitate
250
CR
500:1
Culori
262K/16.7M
Iluminare de fundal
WLED
Interfață
TTL
In Stock
6457
Specificații

PartNumber AT070TN92 V.3
MarcaInnolux
mărimea7.0
AplicațieMP4
Rezoluţie800×480
CompoziţieLCM
Luminozitate250
CR500:1
Culori262K/16.7M
Iluminare de fundalWLED
InterfațăTTL
marca panouluiCHIMEI INNOLUX
model de panouAT070TN92 V.3
tip panou a-Si TFT-LCD , LCM
dimensiunea panoului7.0 inch
rezoluţie800(RGB)×480 , WVGA
modul de afișareTN, Normally White, Transmissive
Zonă activă154.08×85.92 mm
contur164.9×100×3.65 mm
suprafaţăAntiglare
luminozitatea250 cd/m² (Typ.)
Raport de contrast500:1 (Typ.)
culorile afișajului262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150%
timp de raspuns10/15 (Typ.)(Tr/Td)
unghi de vedere70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
frecvență60Hz
tip lampa3S9PWLEDWithout Driver
interfață de semnalParallel RGB (1 ch, 6/8-bit), 50 pins
tensiune de intrare3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL)
aplicareaMP4
