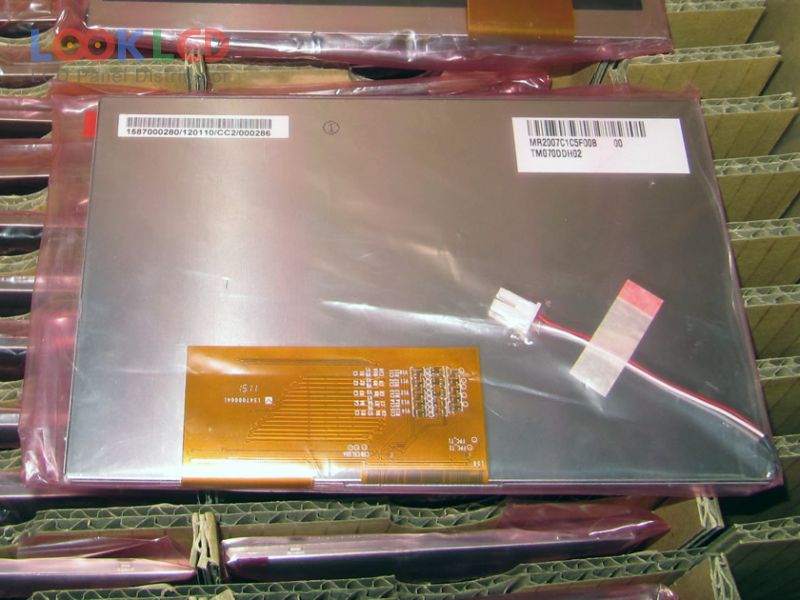

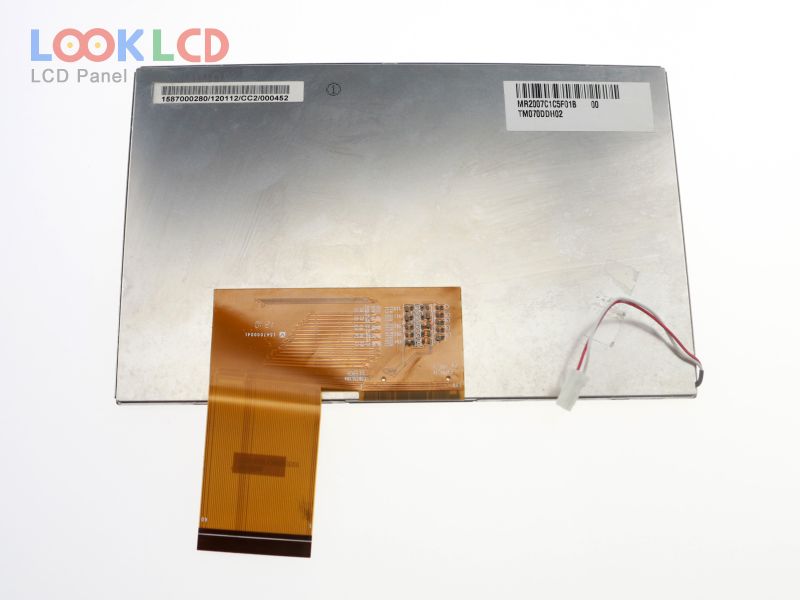

| PartNumber | TM070DDH02 |
| Marca | Tianma |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | AVIC |
| model de panou | TM070DDH02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.7 mm |
| suprafaţă | Antiglare |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 60 pins |
| tensiune de intrare | 3.3/11/20/-6.8V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | MP4 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
| TM070DDH02 | Tianma | 7.0 | 1024×600 |
| TM070DDH03 | Tianma | 7.0 | 1024×600 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH08 | Tianma | 7.0 | 1024×600 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
| TM070RBH10 | Tianma | 7.0 | 800×480 |
| TM070RDH13 | Tianma | 7.0 | 800×480 |
| TM070SDH03 | Tianma | 7.0 | 800×600 |
| TM070WA-22L06 | SANYO | 7.0 | 480×234 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| AT070TN83 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| BA070WS1-200 | BOE | 7.0 | 1024×600 |
| BA070WS1-402 | BOE | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| ED070NA-01N | Innolux | 7.0 | 1024×600 |
| HSD070PFW3-B02 | HannStar | 7.0 | 1024×600 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
