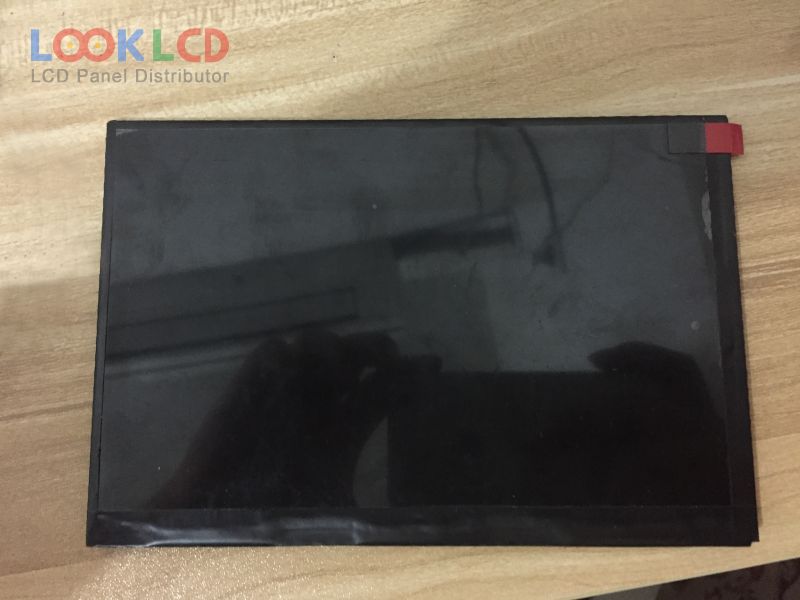

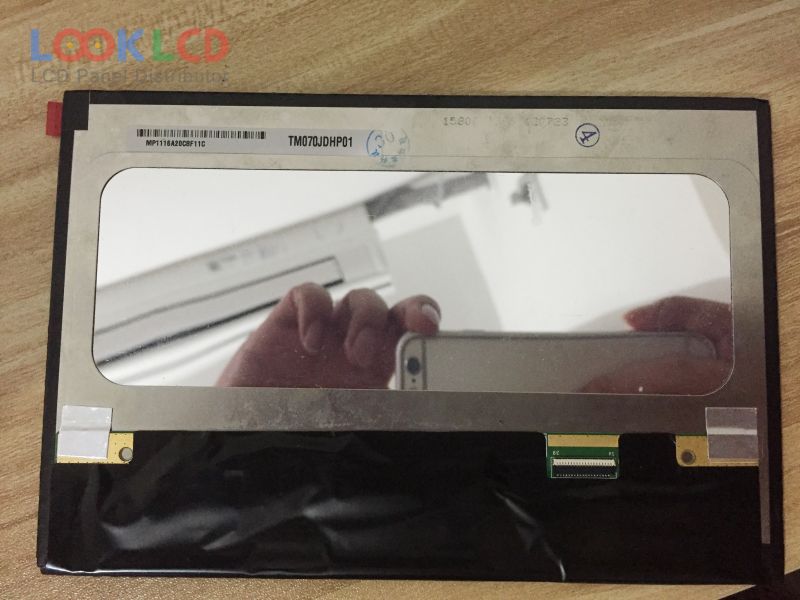

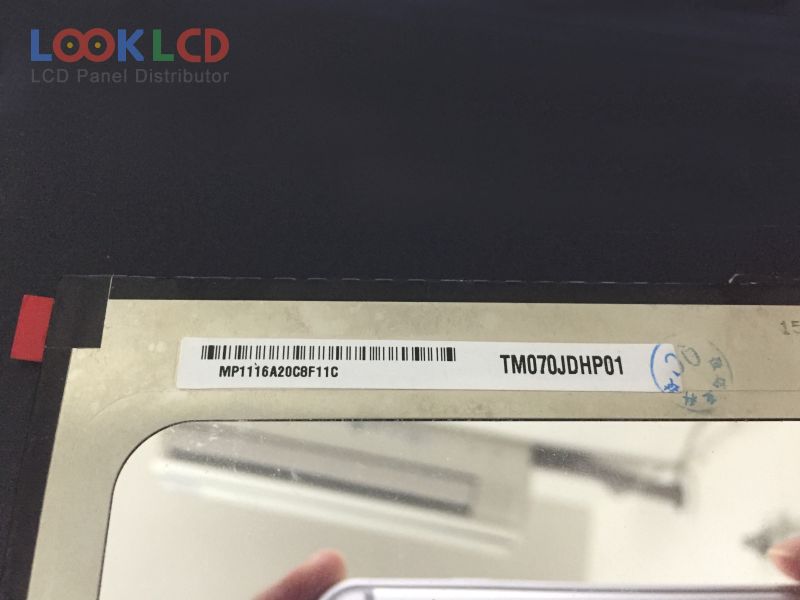

| PartNumber | TM070JDHP01-00 |
| Marca | Tianma |
| mărimea | 7.0 |
| Aplicație | UMPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 420 |
| CR | 800:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | TIANMA |
| model de panou | TM070JDHP01-00 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | SIP, Normally Black, Transmissive |
| Zonă activă | 149.76×93.6 mm |
| contur | 161×107×4.4 mm |
| suprafaţă | Antireflection |
| luminozitatea | 420 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 25 (Typ.)(Tr+Td) |
| unghi de vedere | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 9S2PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 8-bit), 39 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
