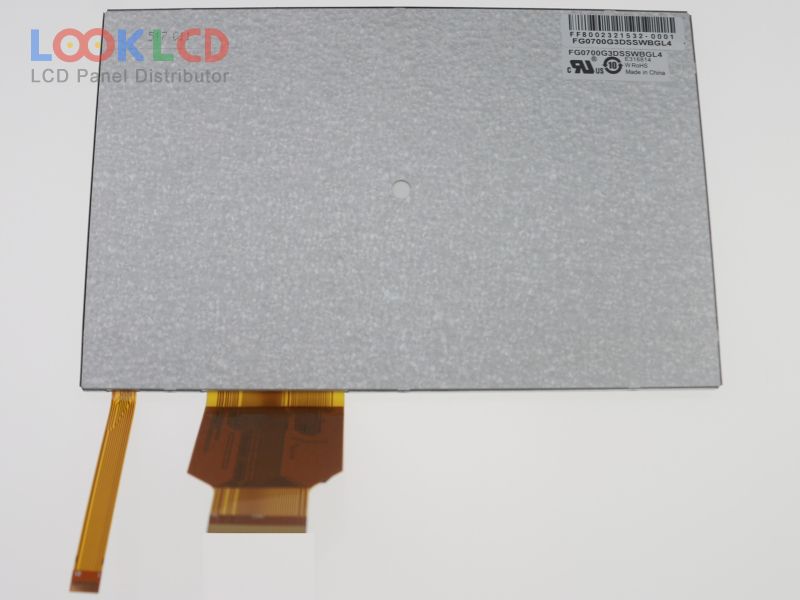

| PartNumber | FG0700G3DSSWBGL4 |
| Marca | Data Image |
| mărimea | 7.0 |
| Aplicație | CNS |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 900 |
| CR | 600:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Data Image |
| model de panou | FG0700G3DSSWBGL4 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 152.4×91.44 mm |
| contur | 165×106.4 mm |
| suprafaţă | |
| luminozitatea | 900 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 5/15 (Typ.)(Tr/Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S10PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | CNS |
