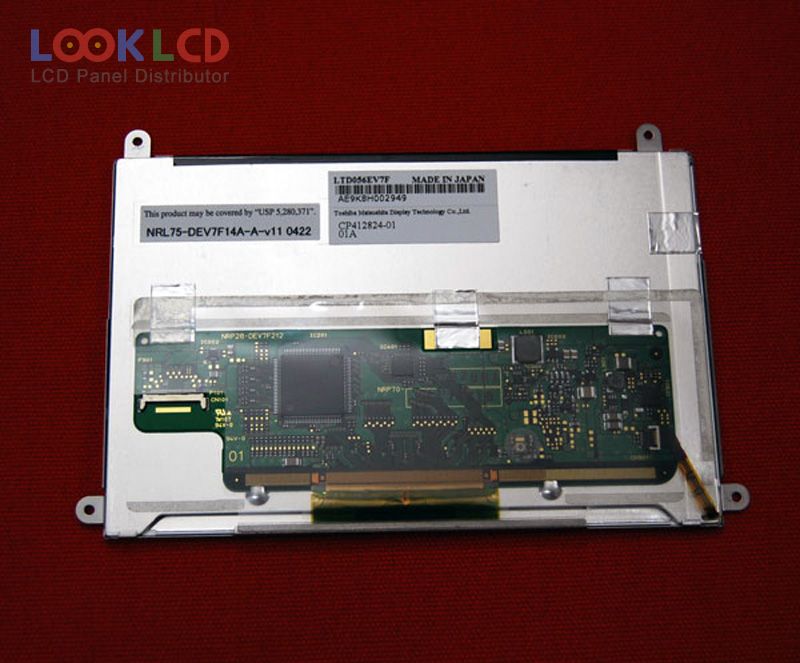

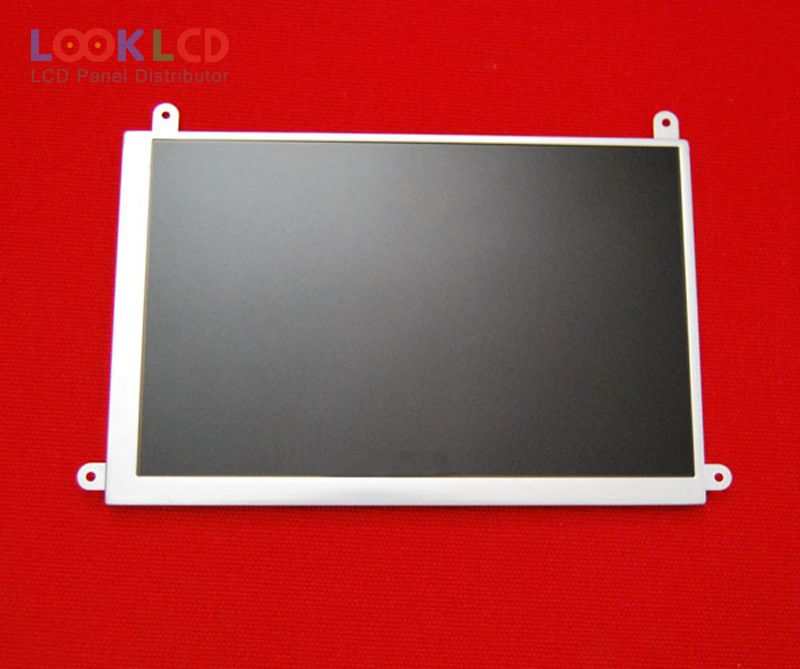

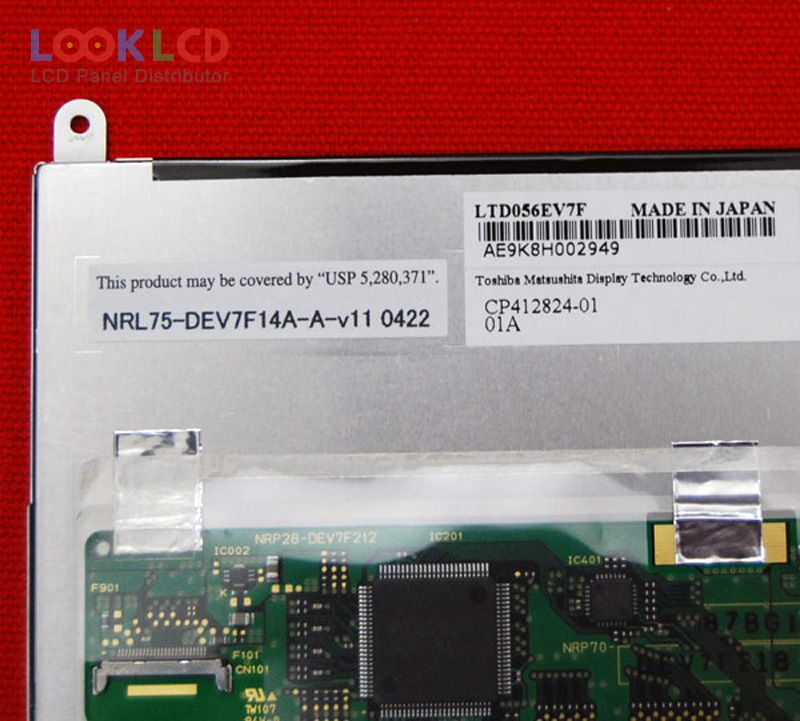

| PartNumber | LTD056EV7F00 |
| Marca | TOSHIBA |
| mărimea | 5.6 |
| Aplicație | UMPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | Toshiba Mobile Display |
| model de panou | LTD056EV7F00 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.6 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | Transmissive |
| Zonă activă | 120.96×75.6 mm |
| contur | 147.5×96.05×5 mm |
| suprafaţă | Glare (Haze 0%) |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 70 (Max.)(Tr+Td) |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 25 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| A056VN01 V0 | AUO | 5.6 | 640×480 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LQ056A3AG01R | SHARP | 5.6 | 320×234 |
| LTD056ET0S | TOSHIBA | 5.6 | 1024×600 |
| LTD056ET0T | TOSHIBA | 5.6 | 1024×600 |
| LTD056ET2F | TOSHIBA | 5.6 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| HSD070PWW1-B01 | HannStar | 7.0 | 1280×800 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LD070WS2-SL03 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL04 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL05 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LTD056EV7F00 | TOSHIBA | 5.6 | 1280×800 |
| N070Y1-T01 | Innolux | 7.0 | 800×480 |
| TM070JDHP01-00 | Tianma | 7.0 | 1280×800 |
