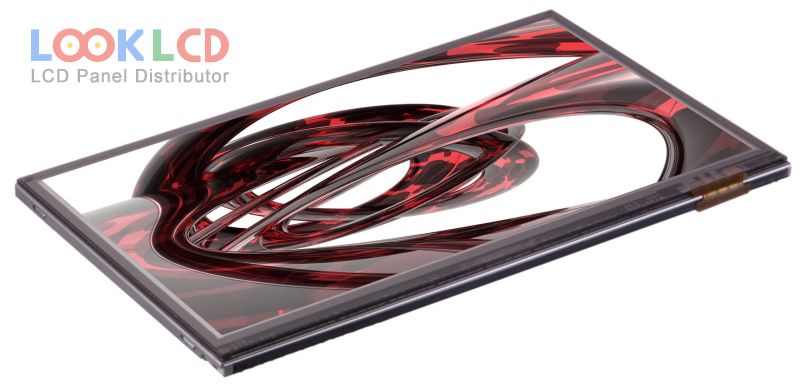

| PartNumber | LQ050W1LA0A |
| Marca | SHARP |
| mărimea | 5.0 |
| Aplicație | UMPC |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 450:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | SHARP |
| model de panou | LQ050W1LA0A |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 109.1×63.9 mm |
| contur | 119×76.3×5.6 mm |
| suprafaţă | Antiglare, Hard coating (2H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 450:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
