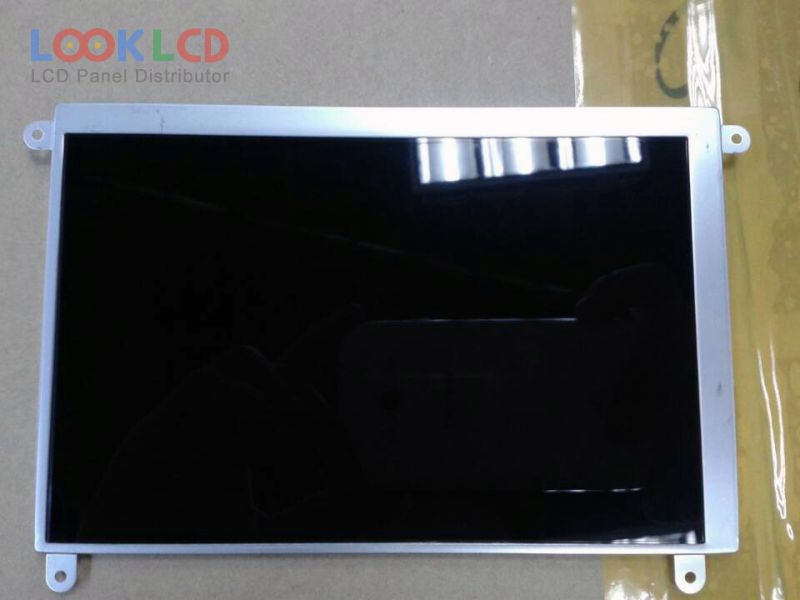

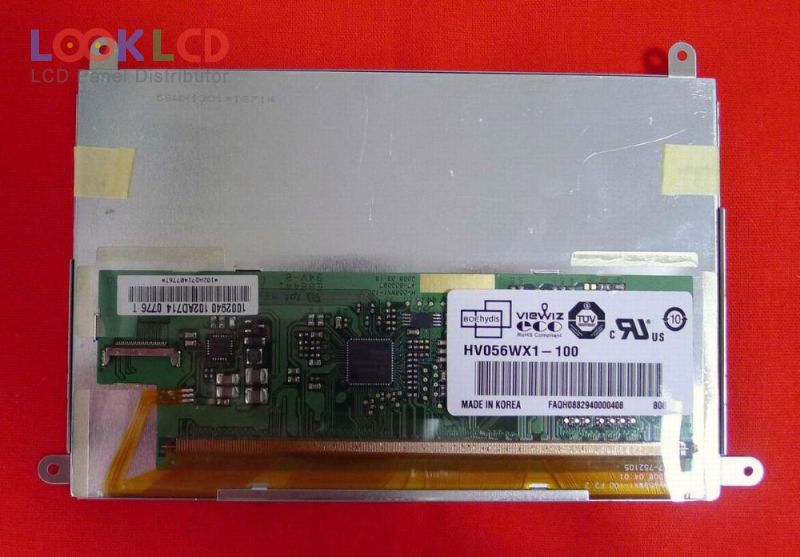

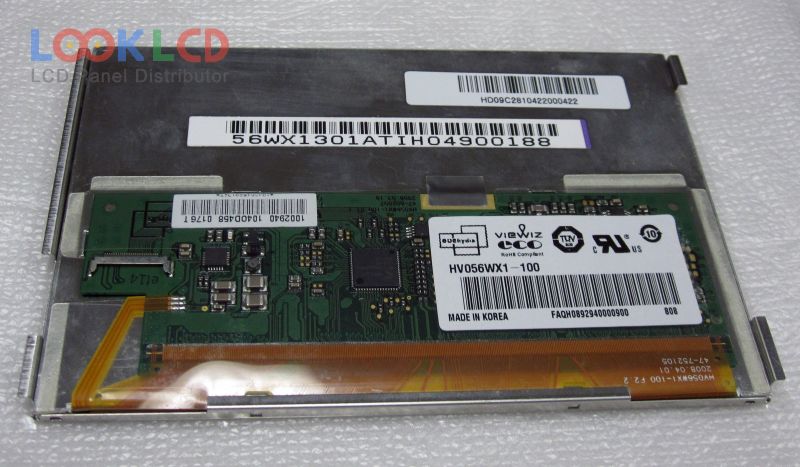

| PartNumber | HV056WX1-100 |
| Marca | HYDIS |
| mărimea | 5.6 |
| Aplicație | UMPC |
| Rezoluţie | 1280×800 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | BOE HYDIS |
| model de panou | HV056WX1-100 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.6 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| modul de afișare | HFFS, Normally Black, Transmissive |
| Zonă activă | 120.96×75.6 mm |
| contur | 131.7×87.7×5 mm |
| suprafaţă | |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 8S2PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 25 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
