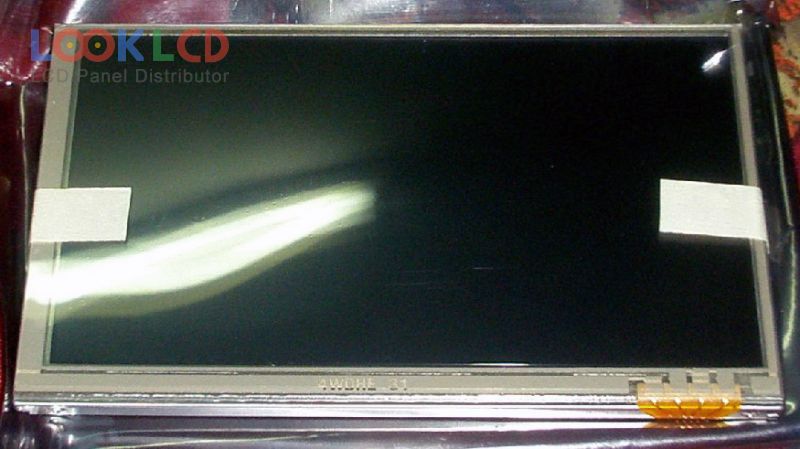

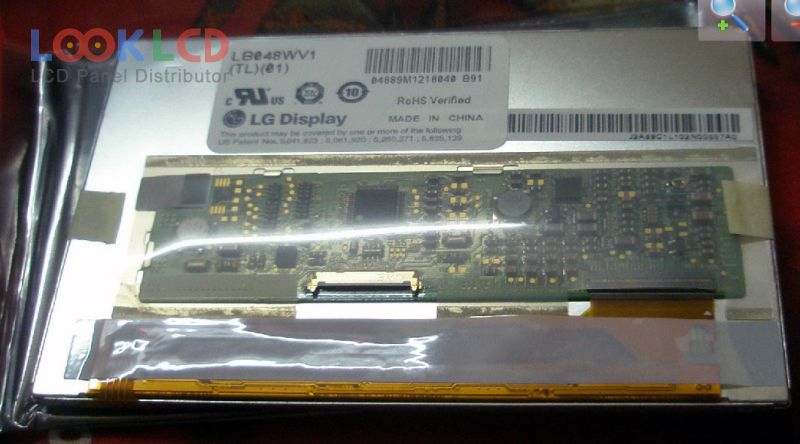

| PartNumber | LB048WV1-TL01 |
| Marca | LG Display |
| mărimea | 4.8 |
| Aplicație | UMPC |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 280 |
| CR | 350:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | LG.Philips LCD |
| model de panou | LB048WV1-TL01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.8 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 103.8×62.28 mm |
| contur | 114.65×74.7×5.88 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (3H) |
| luminozitatea | 280 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 65/65/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S2PWLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
