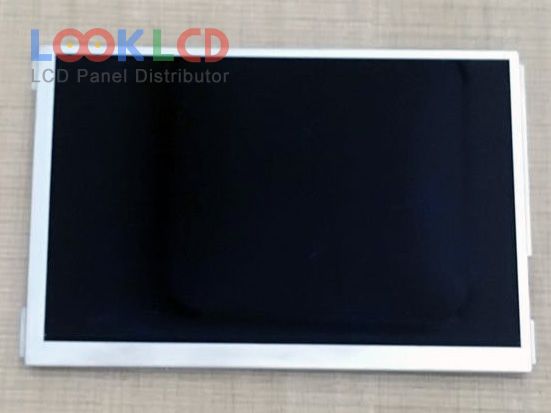

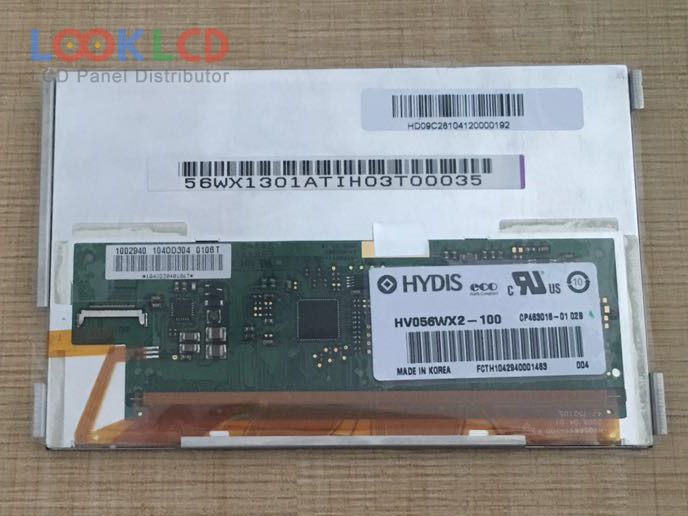

| PartNumber | HV056WX2-100 |
| Marca | HYDIS |
| mărimea | 5.6 |
| Aplicație | UMPC |
| Rezoluţie | 1280×800 |
| Compoziţie | Assembly |
| Luminozitate | 220 |
| CR | 500:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | HYDIS |
| model de panou | HV056WX2-100 |
| tip panou | a-Si TFT-LCD , Assembly |
| dimensiunea panoului | 5.6 inch |
| rezoluţie | 1280(RGB)×800 , WXGA |
| Zonă activă | 120.96×75.6 mm |
| contur | 158×90.3 mm |
| suprafaţă | Glare (Haze 0%), Hard coating (2H) |
| luminozitatea | 220 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193145% |
| unghi de vedere | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| interfață de semnal | LVDS (1 ch, 6-bit), 25 pins |
| aplicarea | UMPC |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| CLAA070NC0DCW | CPT | 7.0 | 1024×600 |
| CLAA070NP01 | CPT | 7.0 | 1024×600 |
| HV056WX2-100 | HYDIS | 5.6 | 1280×800 |
| LD070WS2-SL02 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL05 | LG Display | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LT080EE04000 | TOSHIBA | 8.0 | 1600×768 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
