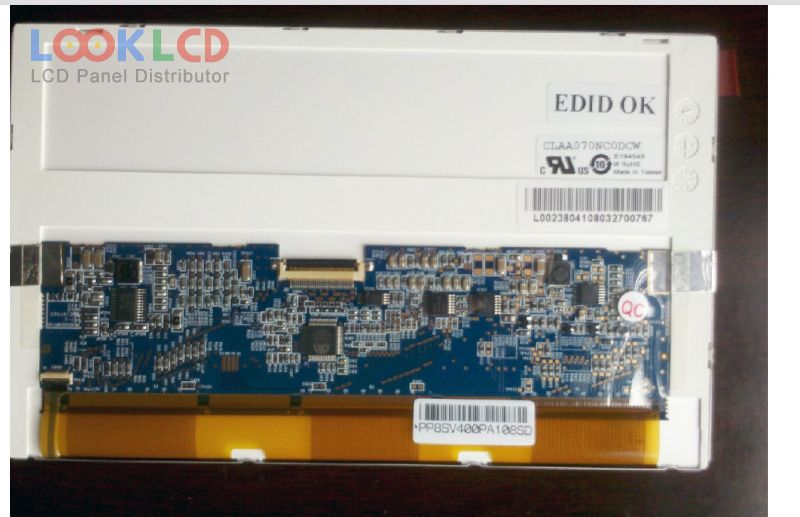

| PartNumber | CLAA070NC0DCW |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | UMPC |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 375 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA070NC0DCW 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165×102×5.2 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 375 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | WLEDEmbedded (LED Driver) |
| interfață de semnal | LVDS (1 ch, 6-bit), 30 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | UMPC |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| HJ070IA-02F | Innolux | 7.0 | 1280×800 |
| HV056WX1-100 | HYDIS | 5.6 | 1280×800 |
| HV056WX1-101 | HYDIS | 5.6 | 1280×800 |
| HV070WSA-100 | BOE | 7.0 | 1024×600 |
| LD070WS2-SL07 | LG Display | 7.0 | 1024×600 |
| LQ050W1LA0A | SHARP | 5.0 | 1024×600 |
| LTD056ET2F | TOSHIBA | 5.6 | 1024×600 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
