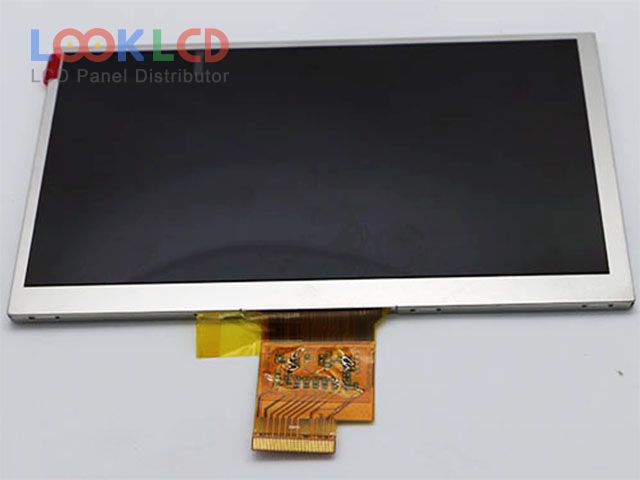

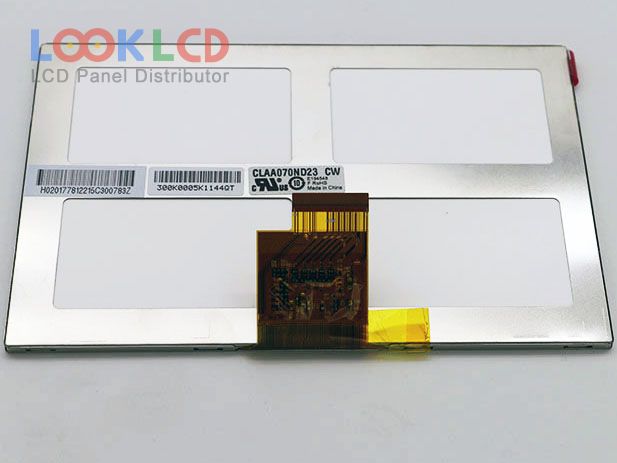

| PartNumber | CLAA070ND23CW |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 700:1 |
| Culori | 262K/16.7M |
| Iluminare de fundal | WLED |
| Interfață | LVDS |
| marca panoului | CPT |
| model de panou | CLAA070ND23CW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 165.75×105.39×3.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 700:1 (Typ.) |
| culorile afișajului | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| timp de raspuns | 16 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S8PWLEDWithout Driver |
| interfață de semnal | LVDS (1 ch, 6/8-bit), 40 pins |
| tensiune de intrare | 3.3/9.6/18/-6V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplicarea | MP4 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03 | CPT | 7.0 | 800×1280 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| AT070TN92 V.3 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.X | Innolux | 7.0 | 800×480 |
| AT070TNA2 | Innolux | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| EJ070NA-01F | Innolux | 7.0 | 1024×600 |
| LMS430HF11 | Samsung | 4.3 | 480×272 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LTG430WQ-F02 | Samsung | 4.3 | 480×272 |
| TM070DDH07 | Tianma | 7.0 | 1024×600 |
| TM070DDH09 | Tianma | 7.0 | 1024×600 |
