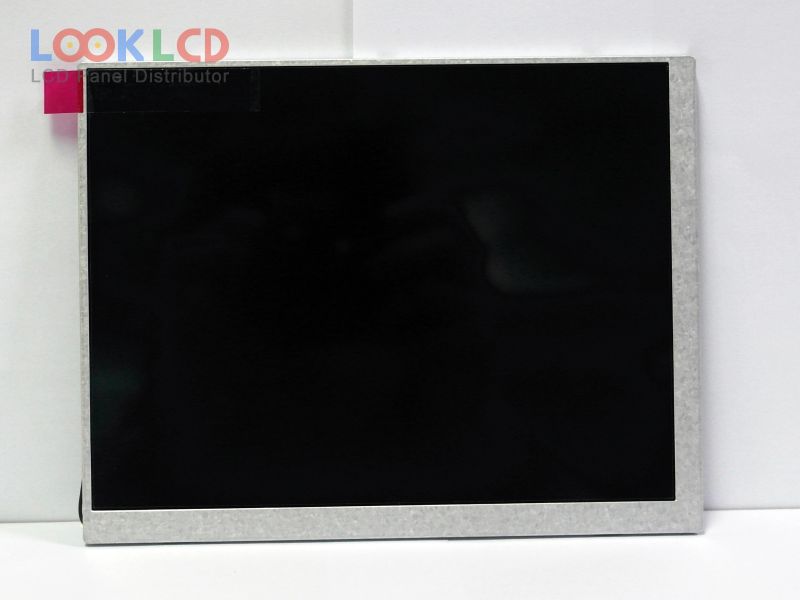

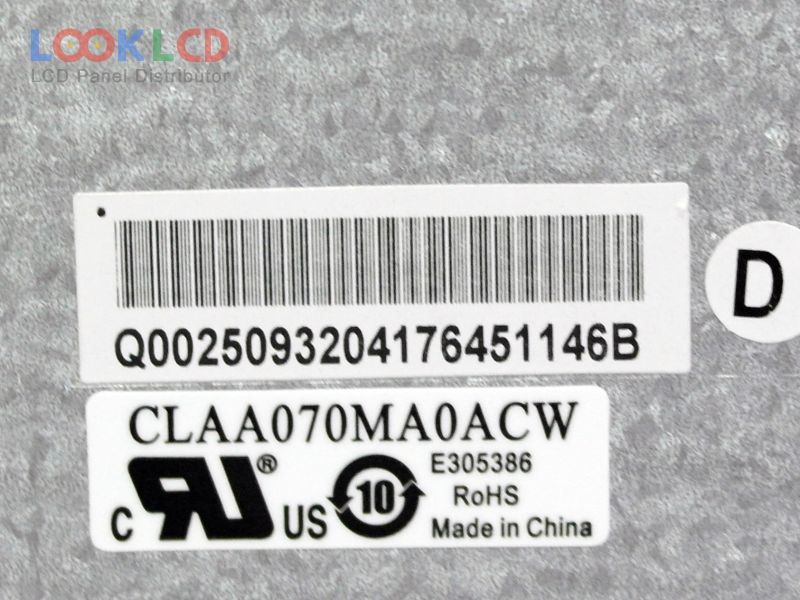

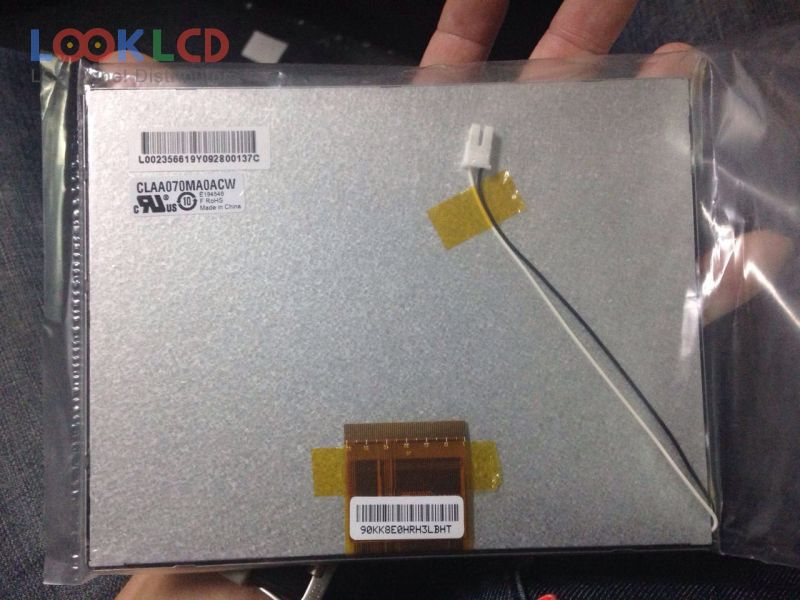

| PartNumber | CLAA070MA0ACW |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | DPF |
| Rezoluţie | 800×600 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 500:1 |
| Culori | 262K/16.2M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | CPT |
| model de panou | CLAA070MA0ACW |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 800(RGB)×600 , SVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 141.6×106.2 mm |
| contur | 154×119.2×5.4 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 262K/16.2M (6-bit / 6-bit + FRC) |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 3S6PWLEDWithout Driver |
| interfață de semnal | TTL (1 ch, 6/8-bit), 60 pins |
| tensiune de intrare | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| aplicarea | DPF |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LF05CW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| CLAA070NB02CT | CPT | 7.0 | 1024×600 |
| CLAA070NC0DCT | CPT | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070ND30CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| A101VW01 V1 | AUO | 10.1 | 800×480 |
| AT070TN90 | Innolux | 7.0 | 800×480 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| DLC0800BIG-4 | Other | 8.0 | 800×600 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| LD050WQ1-TD02 | LG Display | 5.0 | 480×272 |
| PA079DS1T2 | E Ink | 7.9 | 480×234 |
| PW070XU3 | E Ink | 7.0 | 480×234 |
