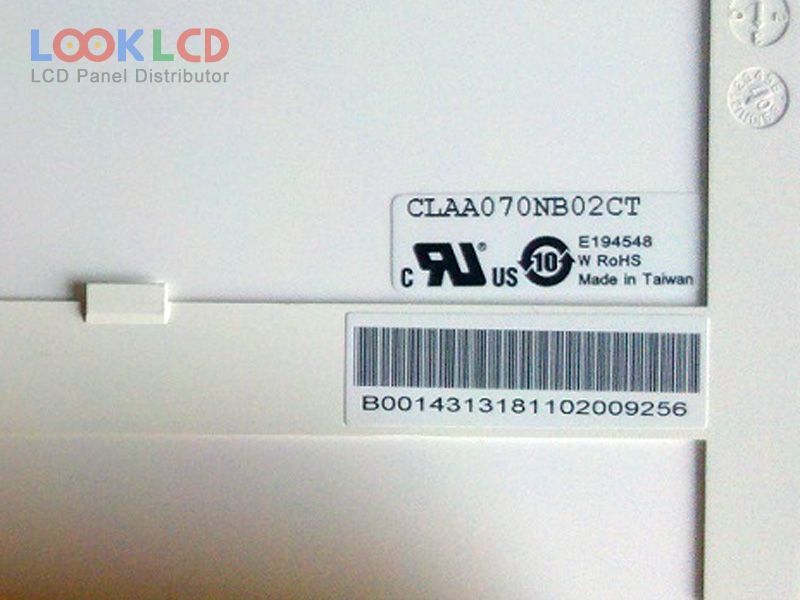

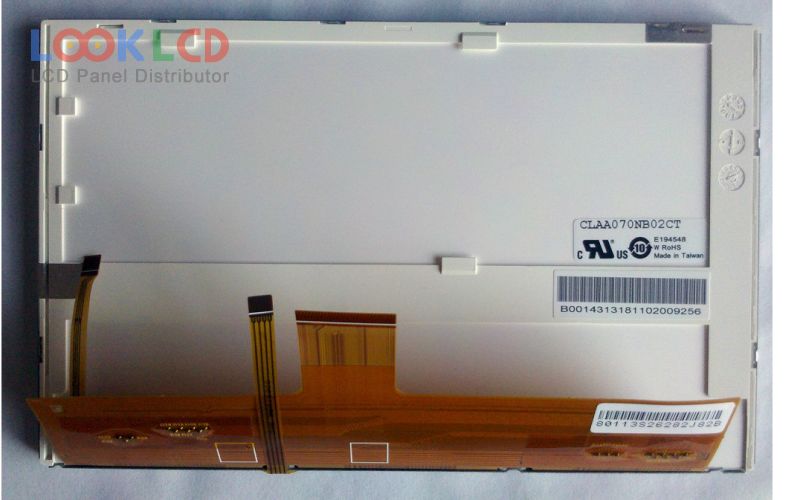

| PartNumber | CLAA070NB02CT |
| Marca | CPT |
| mărimea | 7.0 |
| Aplicație | MP4 |
| Rezoluţie | 1024×600 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 400:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | RSDS |
| marca panoului | CPT |
| model de panou | CLAA070NB02CT |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 7.0 inch |
| rezoluţie | 1024(RGB)×600 , WSVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 153.6×90 mm |
| contur | 162.9×102×5.8 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 400:1 (Typ.) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | WLEDWithout Driver |
| interfață de semnal | RSDS (1 Channel), 61 pins |
| tensiune de intrare | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VDDG/VEEG) |
| rohs: | |
| aplicarea | MP4 |
