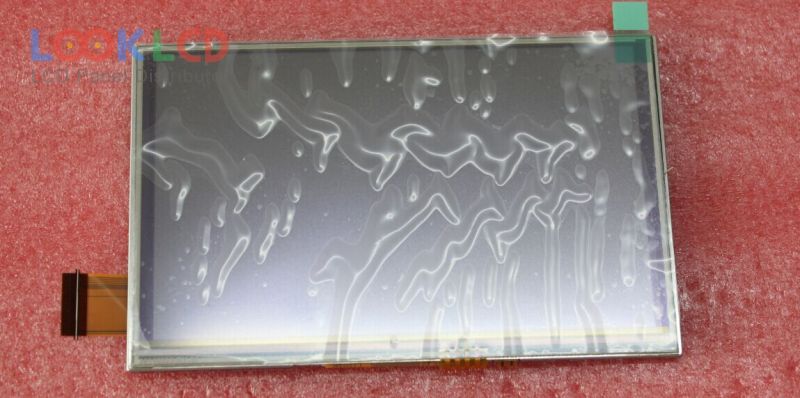

| PartNumber | TM050RBH01 |
| Marca | Tianma |
| mărimea | 5.0 |
| Aplicație | MP4 |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 450:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TIANMA |
| model de panou | TM050RBH01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×75.8×6.3 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 450:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 6S3PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 45 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | MP4 |
| LQ050Q5DR01 | SHARP | 5.0 | 320×240 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| TM050QDH07 | Tianma | 5.0 | 640×480 |
| TM050QDH11 | Tianma | 5.0 | 640×480 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| AT070TN83 TP | Innolux | 7.0 | 800×480 |
| AT070TN93 | Innolux | 7.0 | 800×480 |
| AT070TN93 V.2 | Innolux | 7.0 | 800×480 |
| BA070WS1-401 | BOE | 7.0 | 1024×600 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| CLAA070ND23CW | CPT | 7.0 | 1024×600 |
| HJ070NA-13D | Innolux | 7.0 | 1024×600 |
| LTM07C382 | TOSHIBA | 7.0 | 1024×600 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
