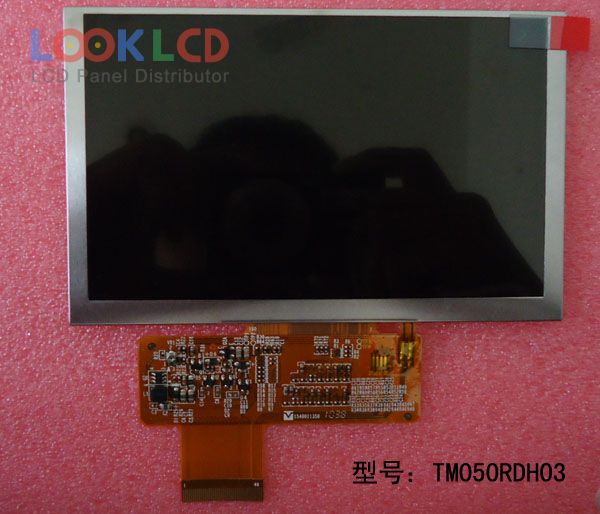

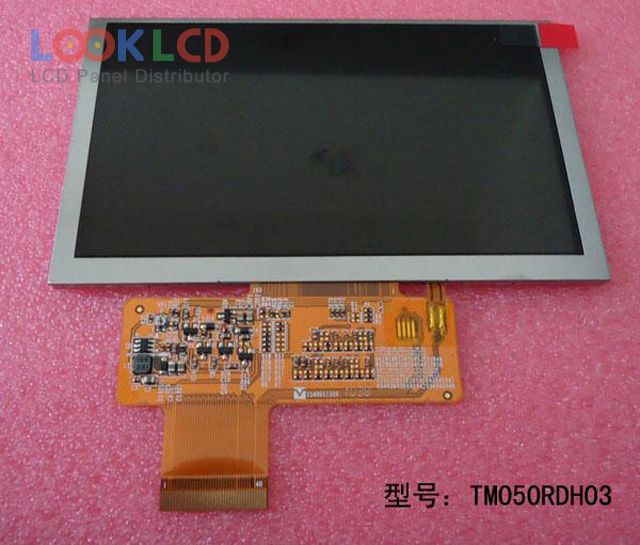

| PartNumber | TM050RDH03 |
| Marca | Tianma |
| mărimea | 5.0 |
| Aplicație | PND |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 250 |
| CR | 600:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | TIANMA |
| model de panou | TM050RDH03 1 Compatible model |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×75.8×3.1 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 250 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 7S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PND |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| TM050JVZG28 | Tianma | 5.0 | 720×1280 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
| TM050QDH01 | Tianma | 5.0 | 640×480 |
| TM050QDH06 | Tianma | 5.0 | 640×480 |
| TM050QDH07 | Tianma | 5.0 | 640×480 |
| TM050QDH11 | Tianma | 5.0 | 640×480 |
| TM050RBH01 | Tianma | 5.0 | 800×480 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
| 37WVF0H | SII | 3.7 | 480×800 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS430HF20 | Samsung | 4.3 | 480×272 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LQ036T1DG01C | SHARP | 3.6 | 272×480 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
