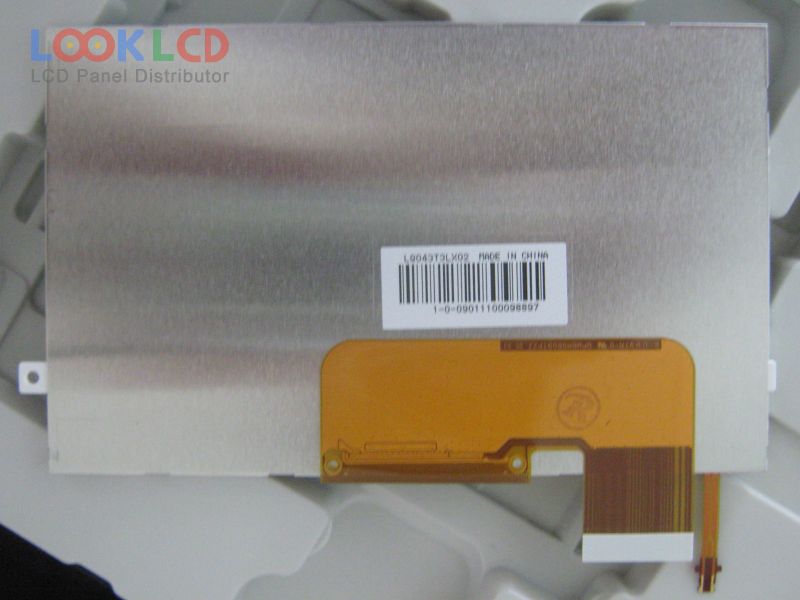

| PartNumber | LQ043T3LX02 |
| Marca | SHARP |
| mărimea | 4.3 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 200 |
| CR | 1500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | |
| marca panoului | SHARP |
| model de panou | LQ043T3LX02 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480×272(RGB) , WQVGA |
| modul de afișare | ASV, Normally Black, Transmissive |
| Zonă activă | 95.04×53.856 mm |
| contur | 103.6×64.35 mm |
| suprafaţă | Antireflection |
| luminozitatea | 200 cd/m² (Typ.) |
| Raport de contrast | 1500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193185% |
| timp de raspuns | 16/8 (Typ.)(Tr/Td) |
| unghi de vedere | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 7S1PWLEDWithout Driver |
| tensiune de intrare | 1.8/1.8/5.6/16.5/-11.0V (Typ.)(VCC/VCCRX/VS/VGH/VGL) |
| aplicarea | PND |
