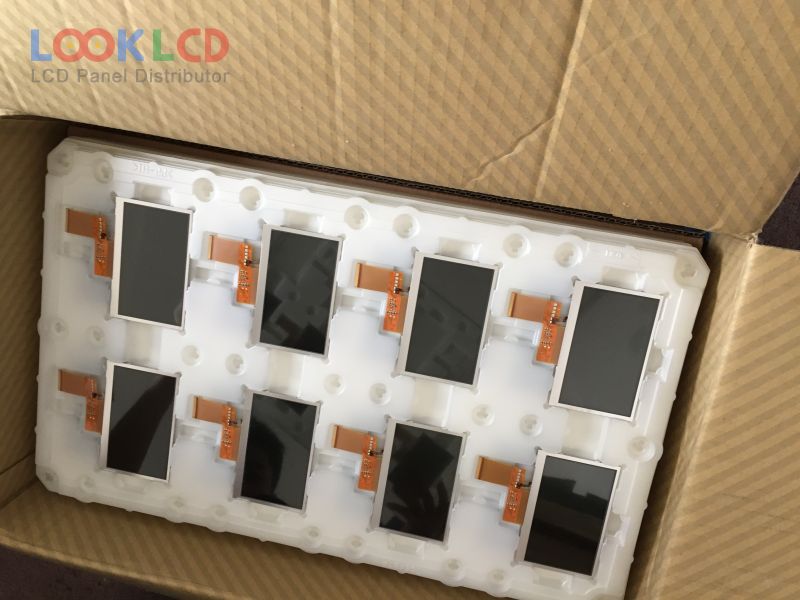

| PartNumber | LQ043T1DG04 |
| Marca | SHARP |
| mărimea | 4.3 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SHARP |
| model de panou | LQ043T1DG04 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480×272(RGB) , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 95.04×53.856 mm |
| contur | 105.5×67.2 mm |
| suprafaţă | |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 8/20 (Typ.)(Tr/Td) |
| unghi de vedere | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 9S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.)(VCI) |
| aplicarea | PND |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX02 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX01 | SHARP | 4.3 | 480×800 |
| 35HVF0H | SII | 3.5 | 320×480 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| DLC0430LZG | Other | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB050WQ2-TD03 | LG Display | 5.0 | 480×272 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ036T1DG01C | SHARP | 3.6 | 272×480 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0E | SHARP | 4.3 | 480×272 |
