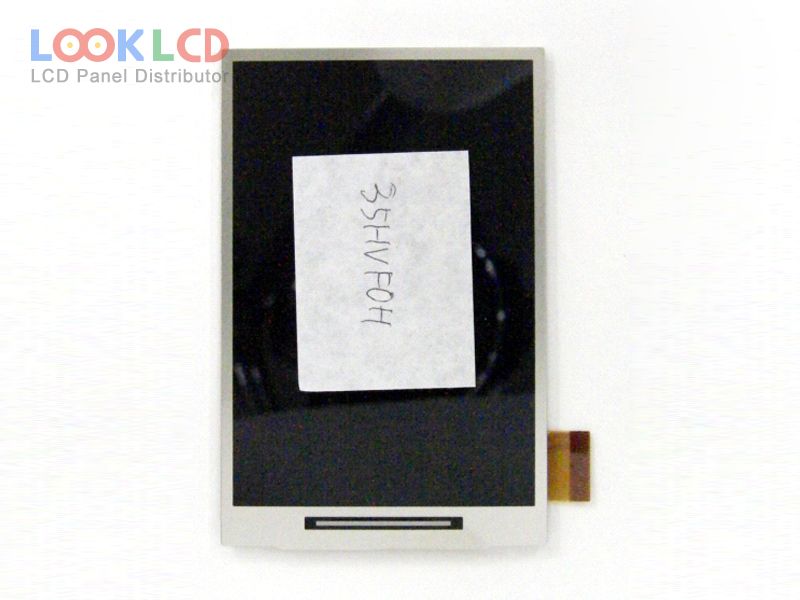

| PartNumber | 35HVF0H |
| Marca | SII |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 800:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SII |
| model de panou | 35HVF0H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×480 , HVGA |
| modul de afișare | FFS, Normally Black, Transmissive |
| Zonă activă | 49.44×74.16 mm |
| contur | 55.34×84.55×2.28 mm |
| suprafaţă | Clear, Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 800:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193170% |
| timp de raspuns | 40 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 5S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| aplicarea | PND |
