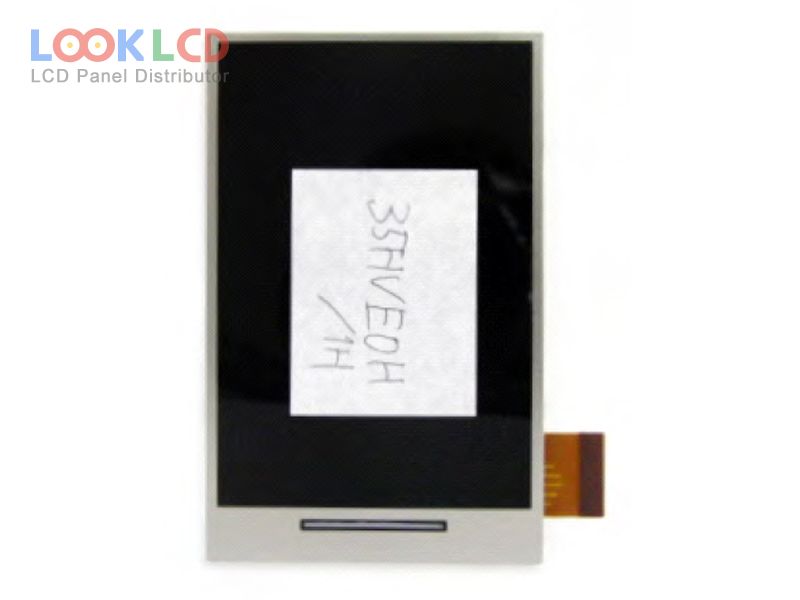

| PartNumber | 35HVE0H |
| Marca | SII |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×480 |
| Compoziţie | LCM |
| Luminozitate | 350 |
| CR | 600:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SII |
| model de panou | 35HVE0H |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×480 , HVGA |
| modul de afișare | E-mode, Normally White, Transmissive |
| Zonă activă | 48.96×73.44 mm |
| contur | 54.96×85.94×2.3 mm |
| suprafaţă | Clear, Hard coating |
| luminozitatea | 350 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 262K (6-bit), CIE193160% |
| timp de raspuns | 30 (Typ.)(Tr+Td) |
| unghi de vedere | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 1S5PWLED |
| interfață de semnal | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| aplicarea | PND |
