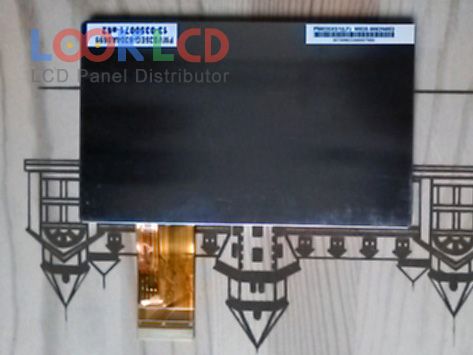

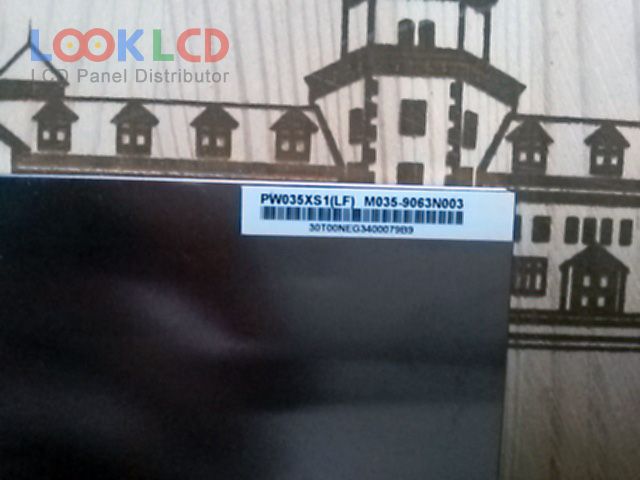

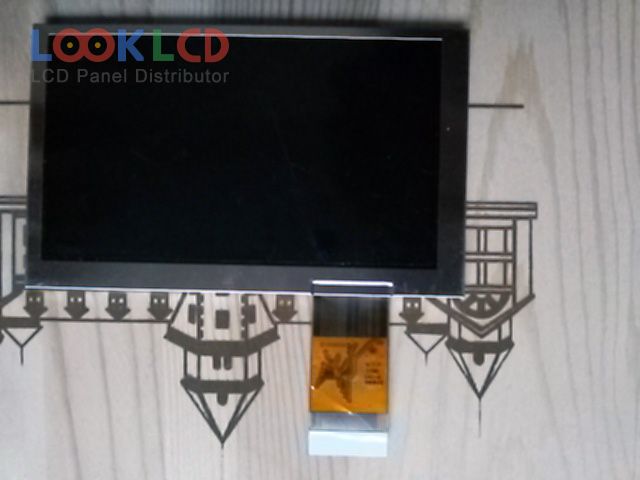

| PartNumber | PW035XS1 |
| Marca | E Ink |
| mărimea | 3.5 |
| Aplicație | PND |
| Rezoluţie | 320×234 |
| Compoziţie | LCM |
| Luminozitate | 300 |
| CR | 350:1 |
| Culori | Full color |
| Iluminare de fundal | WLED |
| Interfață | Analog |
| marca panoului | PVI |
| model de panou | PW035XS1 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 320(RGB)×234 |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 76.32×42.82 mm |
| contur | 88×53.5 mm |
| suprafaţă | Antiglare |
| luminozitatea | 300 cd/m² (Typ.) |
| Raport de contrast | 350:1 (Typ.) |
| culorile afișajului | Full color |
| timp de raspuns | 15/25 (Typ.)(Tr/Td) |
| unghi de vedere | 60/60/50/40 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 3S2PWLEDWithout Driver |
| interfață de semnal | TFT Specific Analog RGB, 30 pins |
| tensiune de intrare | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| aplicarea | PND |
