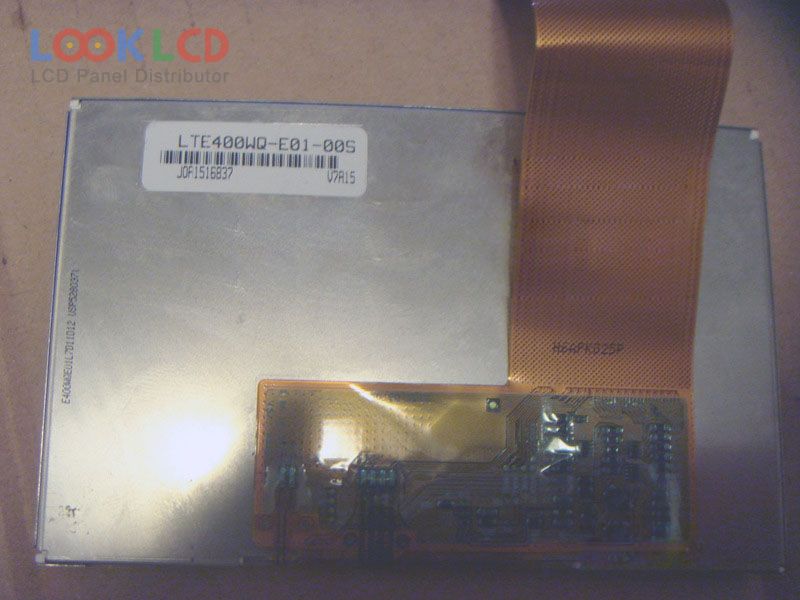

| PartNumber | LTE400WQ-E01 |
| Marca | Samsung |
| mărimea | 4.0 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 180 |
| CR | 180:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | SAMSUNG |
| model de panou | LTE400WQ-E01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.0 inch |
| rezoluţie | 480×272(RGB) , WQVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 87.84×49.776 mm |
| contur | 98.3×62.6 mm |
| suprafaţă | |
| luminozitatea | 180 cd/m² (Typ.) |
| Raport de contrast | 180:1 (Typ.)(Transmissive) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | WLED |
| interfață de semnal | Parallel RGB |
| rohs: | |
| aplicarea | PND |
