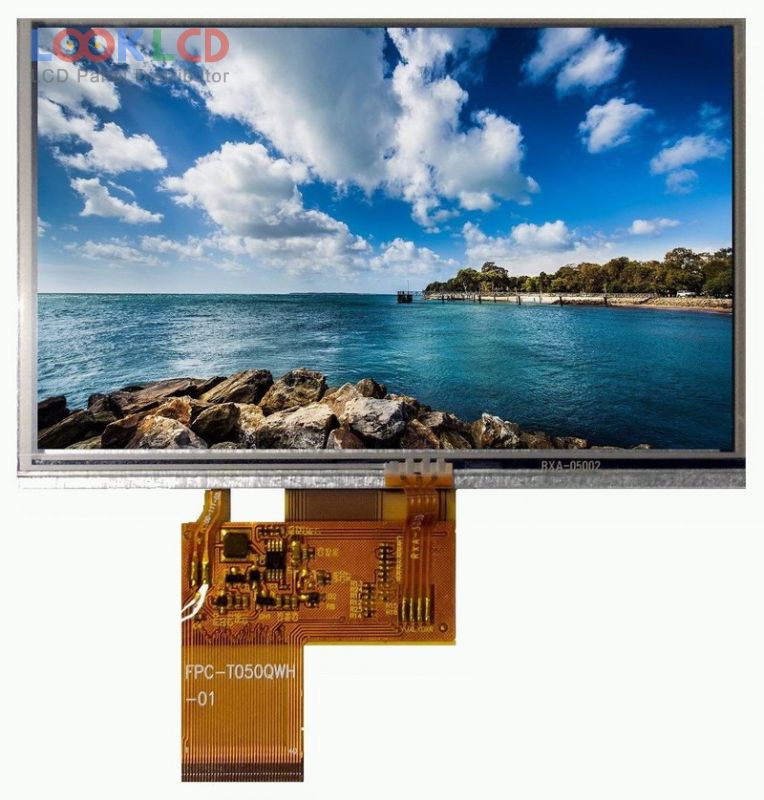

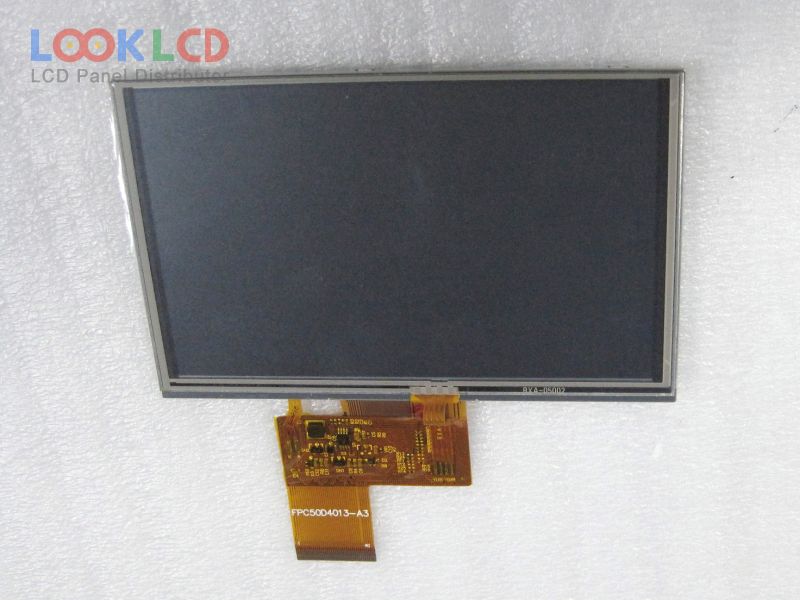

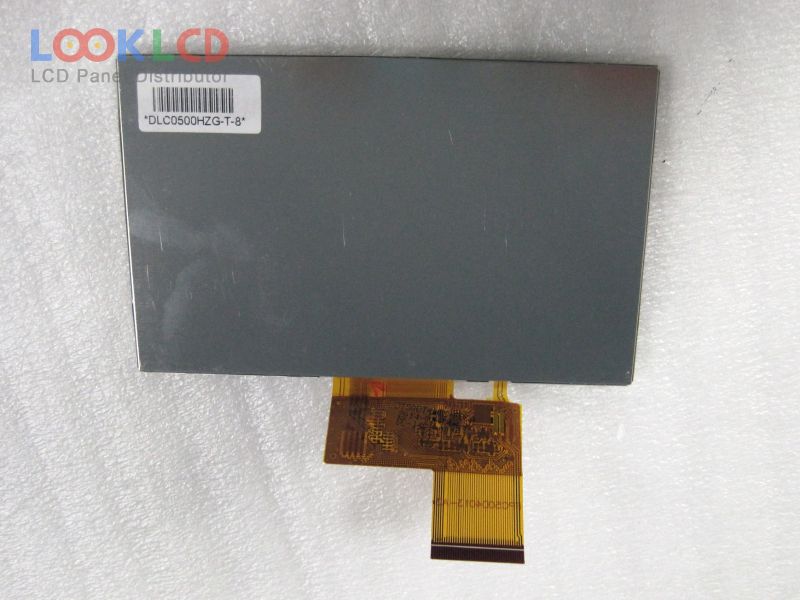

| PartNumber | DLC0500HZG-T-8 |
| Marca | Other |
| mărimea | 5.0 |
| Aplicație | PND |
| Rezoluţie | 800×480 |
| Compoziţie | LCM |
| Luminozitate | 640 |
| CR | 500:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | DLC |
| model de panou | DLC0500HZG-T-8 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 5.0 inch |
| rezoluţie | 800(RGB)×480 , WVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 108×64.8 mm |
| contur | 120.7×75.8×4.5 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 640 cd/m² (Typ.) |
| Raport de contrast | 500:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit), CIE193150% |
| timp de raspuns | 20 (Typ.)(Tr+Td) |
| unghi de vedere | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frecvență | 60Hz |
| tip lampa | 10S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.) |
| aplicarea | PND |
| AM-800480LTMQW-00H-F | AMPIRE | 5.0 | 800×480 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| DLC0500AIG-2 | Other | 5.0 | 640×480 |
| DLC0500EZG-T-6 | Other | 5.0 | 800×480 |
| DLC0500HZG-8 | Other | 5.0 | 800×480 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| EE050NA-04A | Innolux | 5.0 | 640×480 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LQ5AW136R | SHARP | 5.0 | 320×234 |
| PA050XS1 | E Ink | 5.0 | 320×234 |
| 43WQW4H | SII | 4.3 | 480×272 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AM480272H3TMQW-T00H | AMPIRE | 4.3 | 480×272 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LMS430HF17-002 | Samsung | 4.3 | 480×272 |
| LQ043T1DH42 | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
