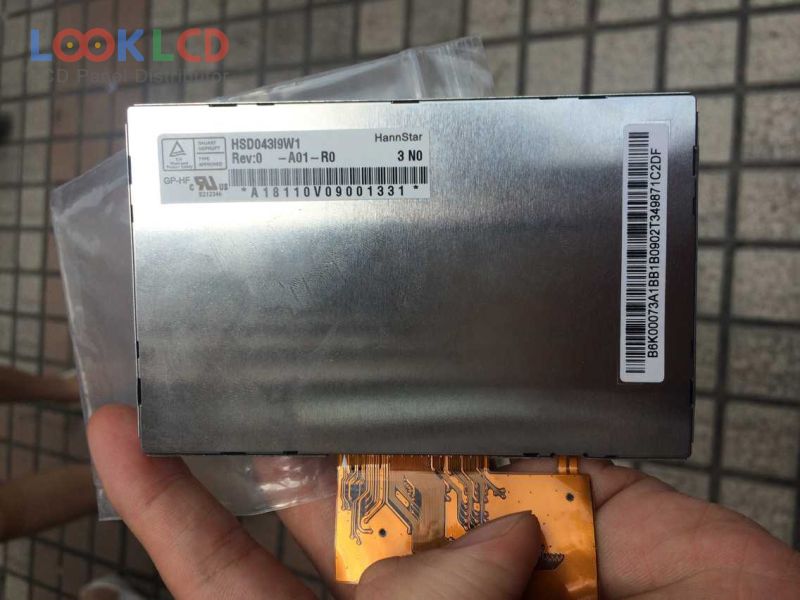

| PartNumber | HSD043I9W1-A01 |
| Marca | HannStar |
| mărimea | 4.3 |
| Aplicație | PND |
| Rezoluţie | 480×272 |
| Compoziţie | LCM |
| Luminozitate | 500 |
| CR | 600:1 |
| Culori | 16.7M |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | HannStar |
| model de panou | HSD043I9W1-A01 |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 4.3 inch |
| rezoluţie | 480(RGB)×272 , WQVGA |
| modul de afișare | TN, Normally White, Transmissive |
| Zonă activă | 95.04×53.856 mm |
| contur | 105.5×67.2 mm |
| suprafaţă | Antiglare, Hard coating (3H) |
| luminozitatea | 500 cd/m² (Typ.) |
| Raport de contrast | 600:1 (Typ.) |
| culorile afișajului | 16.7M (8-bit) |
| timp de raspuns | 3/7 (Typ.)(Tr/Td) |
| unghi de vedere | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 6S2PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 8-bit), 40 pins |
| tensiune de intrare | 3.3V (Typ.)(VDD) |
| aplicarea | PND |
| 43WQW4T | SII | 4.3 | 480×272 |
| H430VL02 V1 | AUO | 4.3 | 480×800 |
| HSD043I9W1-A00 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A00-R0 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-A01 | HannStar | 4.3 | 480×272 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LB043WQ4-TD01 | LG Display | 4.3 | 480×272 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LB043WQ2-TD08 | LG Display | 4.3 | 480×272 |
| LMS430HF41-004 | Samsung | 4.3 | 480×272 |
| LQ036T1DG01 | SHARP | 3.6 | 272×480 |
| LQ043T1DH04 | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| TM050RDH03 | Tianma | 5.0 | 800×480 |
