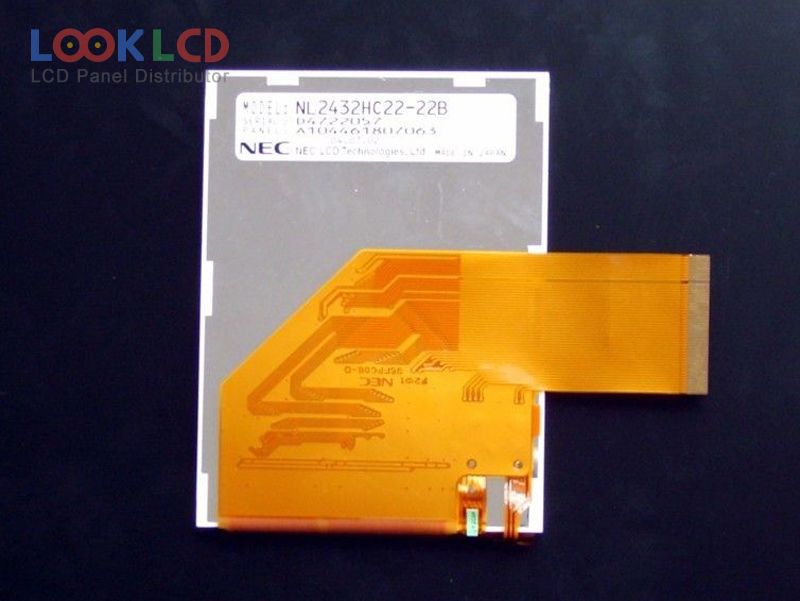

| PartNumber | NL2432HC22-22B |
| Marca | NLT |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 90 |
| CR | 90:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL2432HC22-22B |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 64×85×4.85 mm |
| suprafaţă | |
| luminozitatea | 90 cd/m² (Typ.) |
| Raport de contrast | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193140% |
| timp de raspuns | 14/25 (Typ.)(Tr/Td) |
| unghi de vedere | |
| frecvență | 60Hz |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | CMOS (1 ch, 6-bit), 50 pins |
| tensiune de intrare | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplicarea | PDA |
