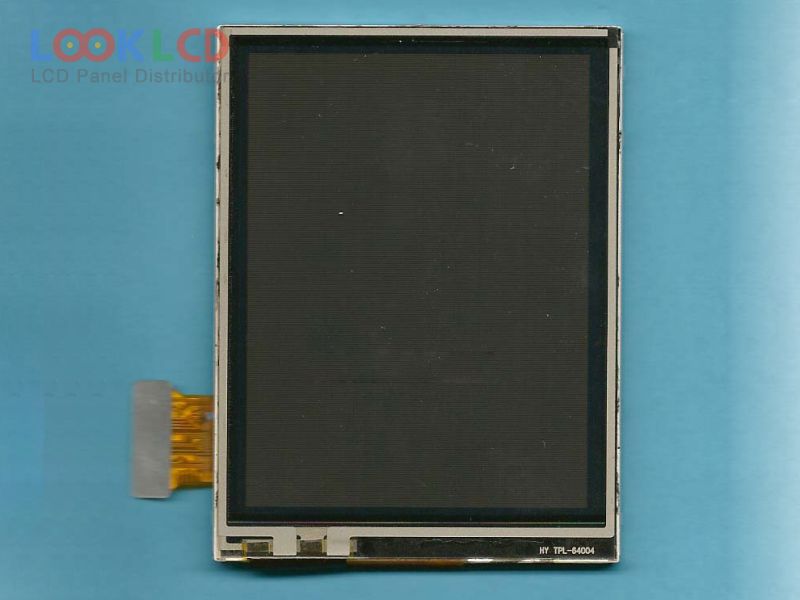

| PartNumber | TD035STEB2 |
| Marca | TPO |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 100 |
| CR | 100:1 |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | Toppoly |
| model de panou | TD035STEB2 |
| tip panou | LTPS TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Transflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 64×85×4.9 mm |
| suprafaţă | |
| luminozitatea | 100 cd/m² (Typ.) |
| Raport de contrast | 100:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| culorile afișajului | 262K (6-bit), CIE193140% |
| timp de raspuns | 10/20 (Typ.)(Tr/Td) |
| unghi de vedere | 55/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tip lampa | 6S1PWLEDWithout Driver |
| interfață de semnal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensiune de intrare | 3.3/5.0/11.7/-6.5V (Typ.)(VCC3/VCC5/VDD/VEE) |
| aplicarea | PDA |
