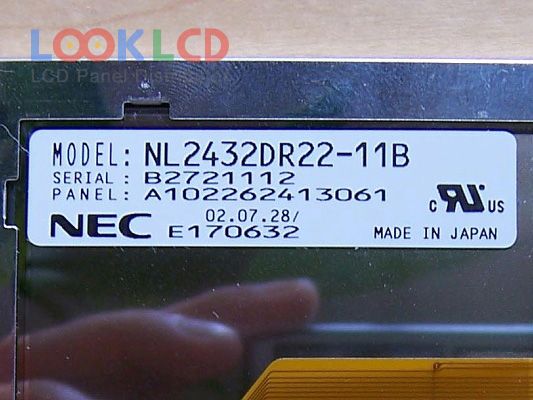

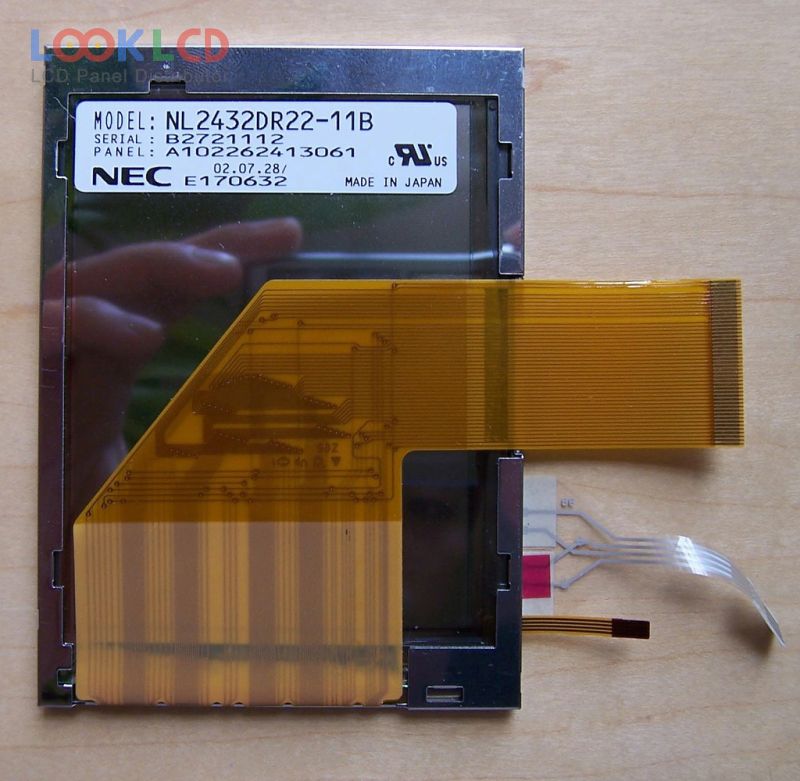

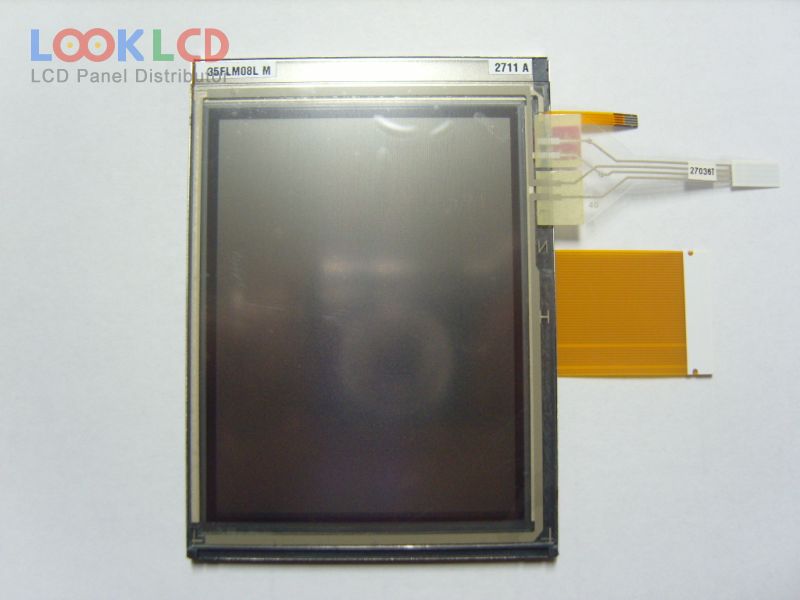

| PartNumber | NL2432DR22-11B |
| Marca | NLT |
| mărimea | 3.5 |
| Aplicație | PDA |
| Rezoluţie | 240×320 |
| Compoziţie | LCM |
| Luminozitate | 50 |
| CR | |
| Culori | 262K |
| Iluminare de fundal | WLED |
| Interfață | TTL |
| marca panoului | NEC |
| model de panou | NL2432DR22-11B |
| tip panou | a-Si TFT-LCD , LCM |
| dimensiunea panoului | 3.5 inch |
| rezoluţie | 240(RGB)×320 , QVGA |
| modul de afișare | TN, Normally White, Reflective |
| Zonă activă | 53.64×71.52 mm |
| contur | 66.2×91×4.7 mm |
| suprafaţă | Hard coating (3H) |
| luminozitatea | 50 cd/m² (Typ.) |
| Raport de contrast | 10/10(Reflective) |
| culorile afișajului | 262K (6-bit) |
| timp de raspuns | 15/17 (Typ.)(Tr/Td) |
| unghi de vedere | |
| tip lampa | 2S2PWLED |
| interfață de semnal | CMOS (1 ch, 6-bit), 45 pins |
| tensiune de intrare | 3.0/5.25/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| aplicarea | PDA |
| 990000738A | Innolux | 3.5 | 320×240 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| DLC0350SZG | Other | 3.5 | 480×640 |
| LH350H01-FD01 | LG Display | 3.5 | 320×480 |
| LQ035NC111 | Innolux | 3.5 | 320×240 |
| LQ035Q7DB02R | SHARP | 3.5 | 240×320 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LTP500GV-F01 | Samsung | 5.0 | 480×640 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-41K | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
